Using 2-, 4- & 6-Channel Audio Function
1 *Line Out (Rear channels)
2 Line Out (Front channels)
3 MIC
* Line In function is converted to
Line Out function when 4-Channel
Mode for 4-Speaker Output is selected.
n 4-Channel Mode for 4-Speaker Output
The audio jacks on the back panel always provide 2-channel analog audio
output function, however these audio jacks can be transformed to 4- or 6-
channel analog audio jacks by selecting the corresponding multi-channel
operation from No. of Speakers.

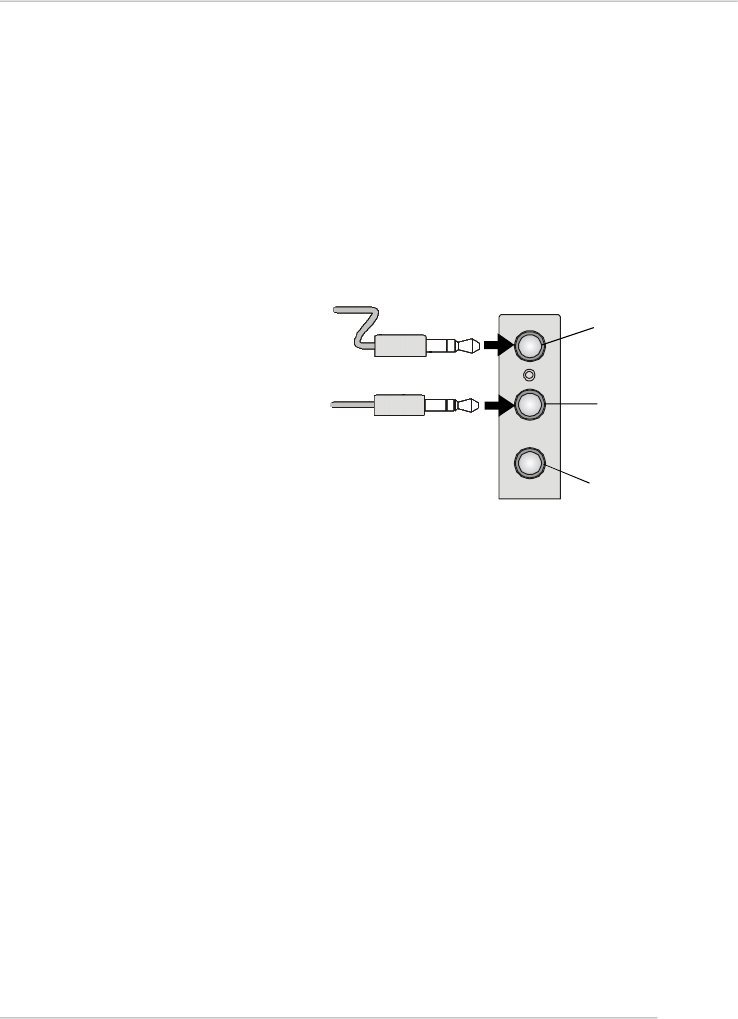

Refer to the following diagram and caption for the function of each jack on
the back panel when 4-Channel Mode is selected.
Back Panel
3
1
2
