NCR RealScan 7883 Installation and Owner Guide
497-0424789 Release F 04/04
43 of 75
Installing the Scanner
1. Using the Velcro Strips provided by NCR, attach the Key Switch Alarm Box to the
RealScan 7883 as shown.
Note: The top of the Key Switch Alarm Box must be below the top of the
RealScan 7883. Refer to the illustrations under Configuring the Scale.

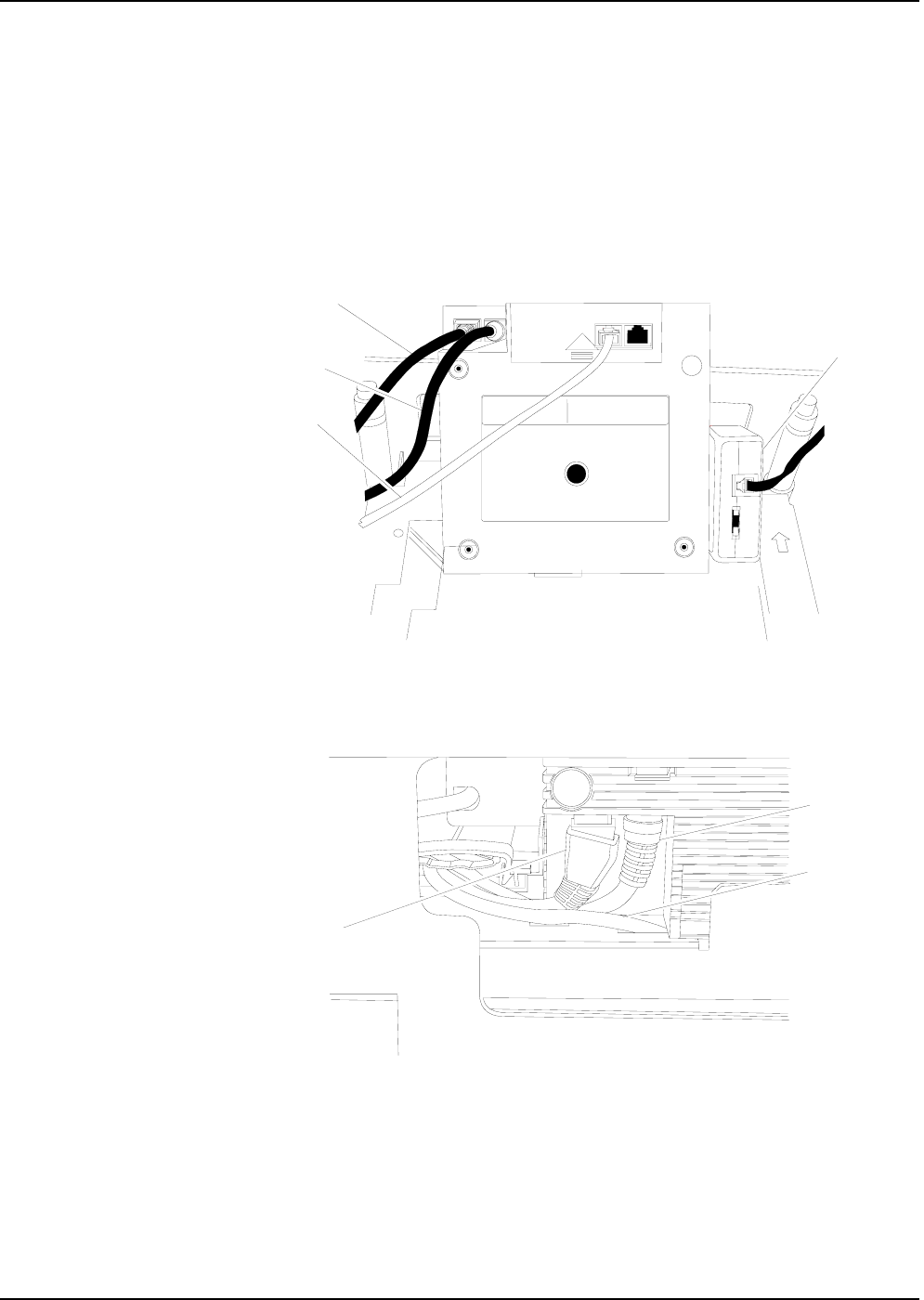

2. Connect the Power Cable, Interface Cable, and the Scale Cable to the RealScan 7883.
20212
Interface Cable
Power Cable
Scale Cable
Key Switch
Alarm Box
3. Position the RealScan 7883 on top of the Bridge Plate as shown under Configuring
the Scale. The Scale Cable runs through a slot in the Bridge Plate.
20213
Interface Cable
Power
Cable
Scale
Cable
