REMOTE CONTROL
3
1
2
9
E
7
4
5
6
0
POWER
VIDEO1
RGB
SPLIT
VIDEO2 VIDEO3
NORMALIZE MODE1
VIDEO4
UP
MODE2 DOWN

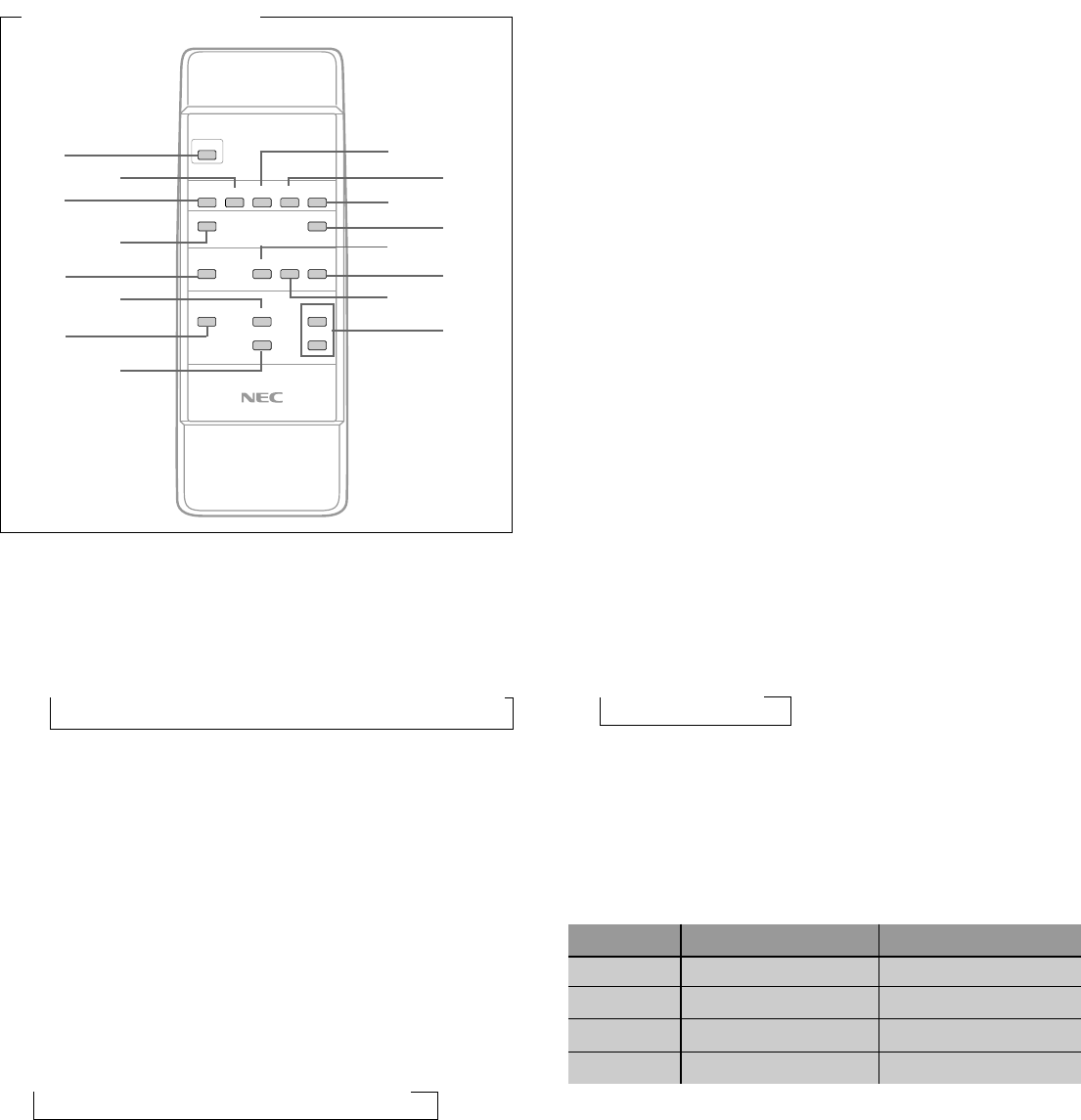

REMOTE CONTROL UNIT RD-338E
MONITOR
VIDEO5
NOISE
REDUCTION
MOVIE STILL
D
C
8
B
A
F
B
1 POWER Button
Turns the power on or off.
2 VIDEO 1 Button
Switches the unit to the video 1 input mode.
3 VIDEO 2 Button
Switches the unit to the video 2 input mode.
4 VIDEO 3 Button
Switches the unit to the video 3 input mode.
5 VIDEO 4 Button
Switches the unit to the video 4 input mode.
6 VIDEO 5 Button
Switches the unit to the video 5 input mode.
7 RGB Button
Switches the unit to the RGB input mode.
8 MONITOR Button
Used to switch on the monitor mode at the time of RGB input.
9 SPLIT
Press to activate the demonstration split mode function for processing
the artificial interlace and switching off the 3-dimensional Y/C separa-
tion processing the right half of the screen.
This function is for use when the NTSC indicator is lit.
0 NOISE REDUCTION Button
Used when screen noise becomes annoying. Each time this button is
pressed, the NR function will change as follows:
→ OFF → NOISE REDUCTION 1 → NOISE REDUCTION 2
(Noise is reduced) (Noise is further reduced)
A MOVIE Button
Press to manually set the method of Y/C separation and image interpo-
lation.
B STILL Button
Press to display still images such as those from document cameras, etc.
The Y/C separation and image interpolation will be set for the still
screen mode.
C NORMALIZE Button
Sets the various adjustments to the standard settings (which had been
set at the factory prior to shipping).
D MODE 1 Button
Selects image adjustment and audio adjustment. Each time this button
is pressed, mode 1 will change as follows:
→ COLOR → TINT → SHARPNESS → SOUND
E MODE 2 Button
Used to select the image system. Each time this button is pressed, mode
2 will change as follows:
→ SPLIT → MOVIE
• SPLIT..........Selects the demonstration split mode function for pro-
cessing the artificial interlace and switching off the 3-
dimensional Y/C separation processing the right half
of the screen.
This function is for use when the NTSC indicator is lit.
• MOVIE .......Selects the Y/C separation method and the image
interpolation method.
Mode Y/C Separation Image Interpolation
Normal Motion adaptation Motion adaptation
Movie 1 Move mode Move mode
Movie 2 Move mode Motion adaptation
Movie 3 Motion adaptation Move mode
F DOWN and UP Buttons
Used to adjust or activate the item selected with the MODE 1 or MODE
2 button.
