Disassembly and Reassembly
Service Manual

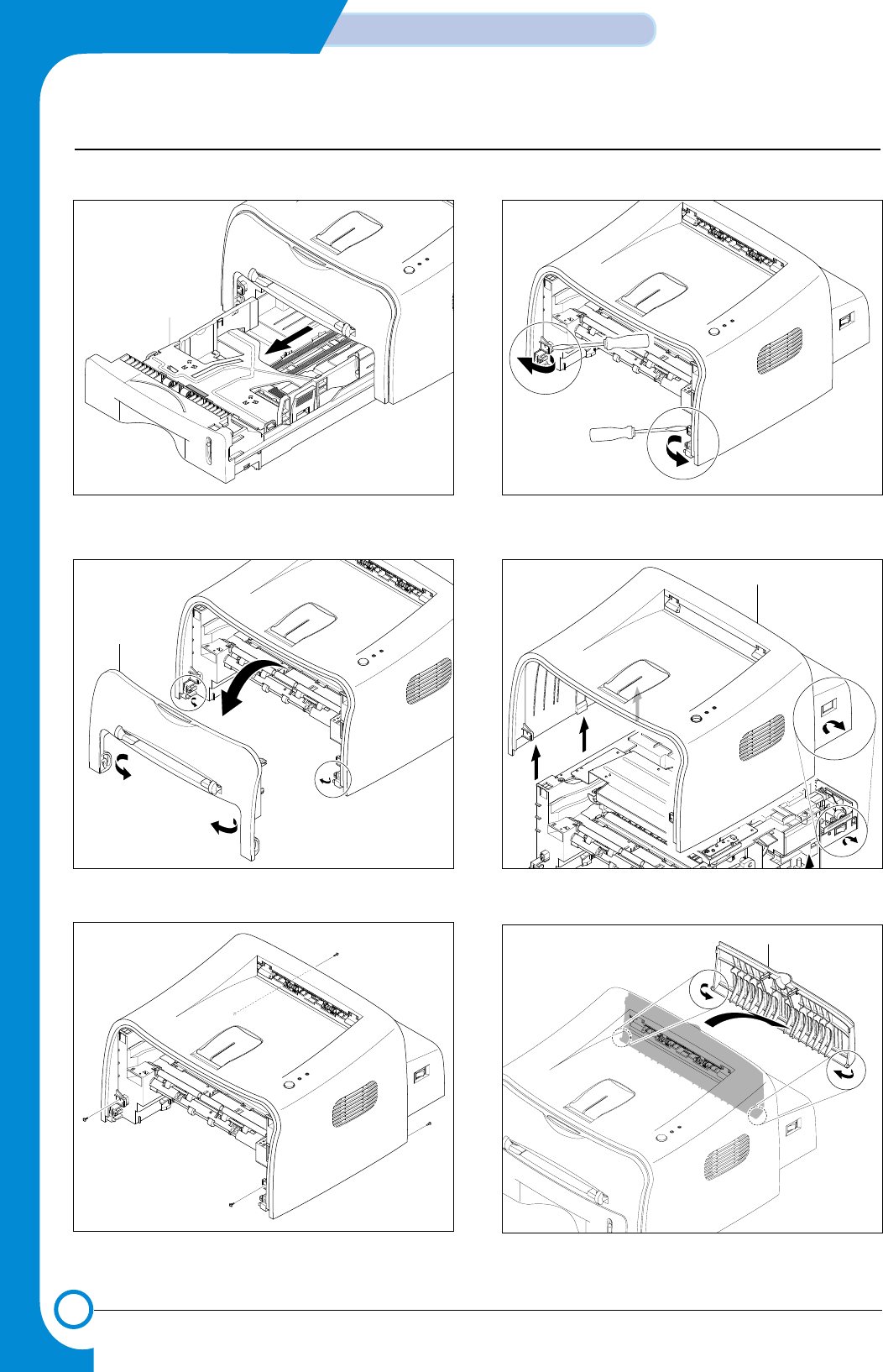

1. Pull the Cassette out of the printer.
2. Remove the Front Cover in the direction of
arrow.
3. Remove four screws.
4. Unlatch the front ends of the Top Cover.
5. Remove the Top Cover in the direction of arrow.
6. Remove the Rear Cover from the Top Cover.
Cassette
Top Cover
Rear Cover
Front Cover
3.2 Top Cover
