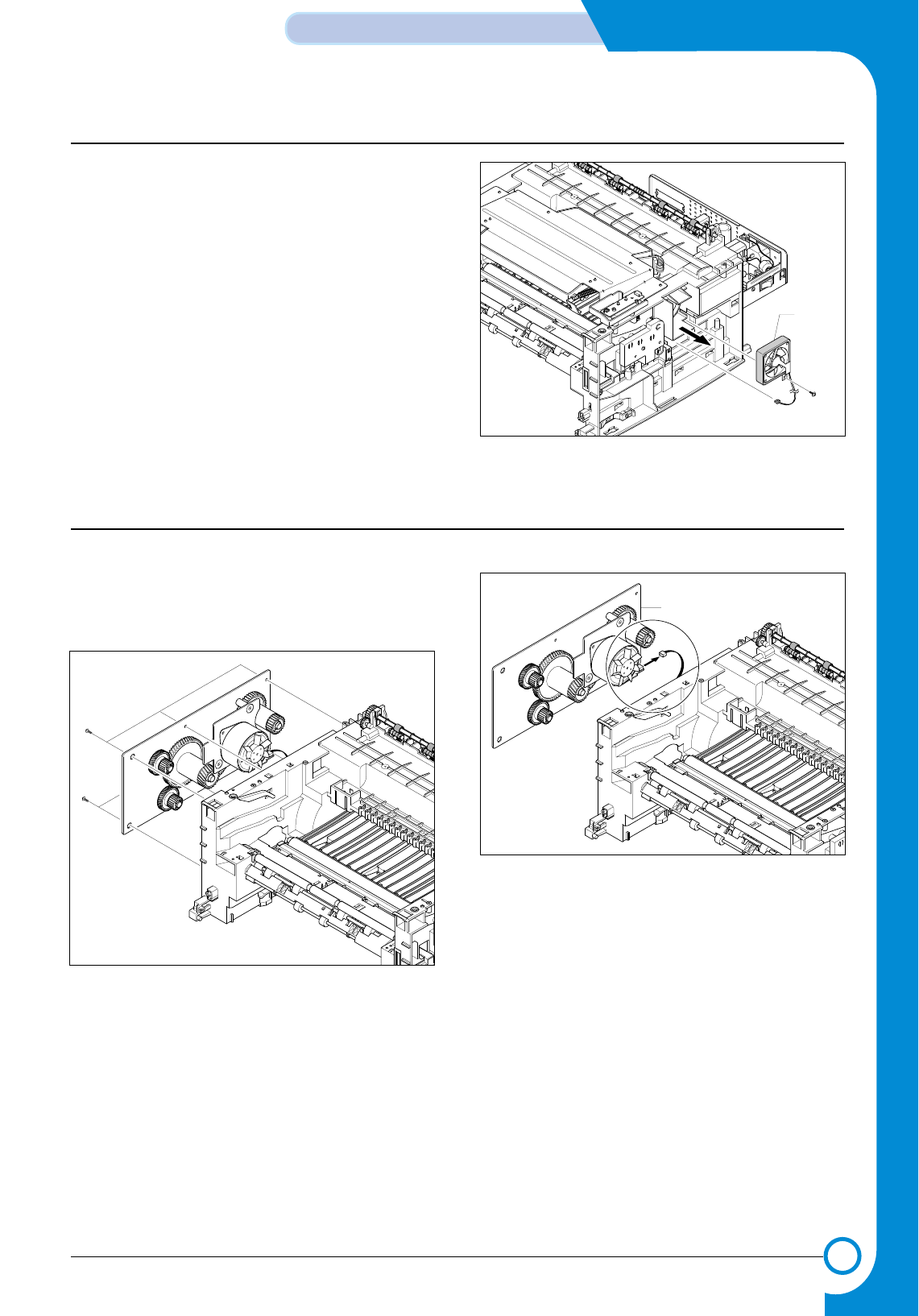

3-5
Disassembly and Reassembly
Service Manual
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 3-2)
2. Unplug the connector from the SMPS and
remove the one screw. Then take out the Fan.
DC Fan
3.6 Fan
3.7 Driver Ass’y
1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 3-2)
2. Remove the six screws from the Drive Ass’y.
3. Unplug one connector from the Driver Ass’y
Drive Ass'y
