3-3
Disassembly and Reassembly
Service Manual

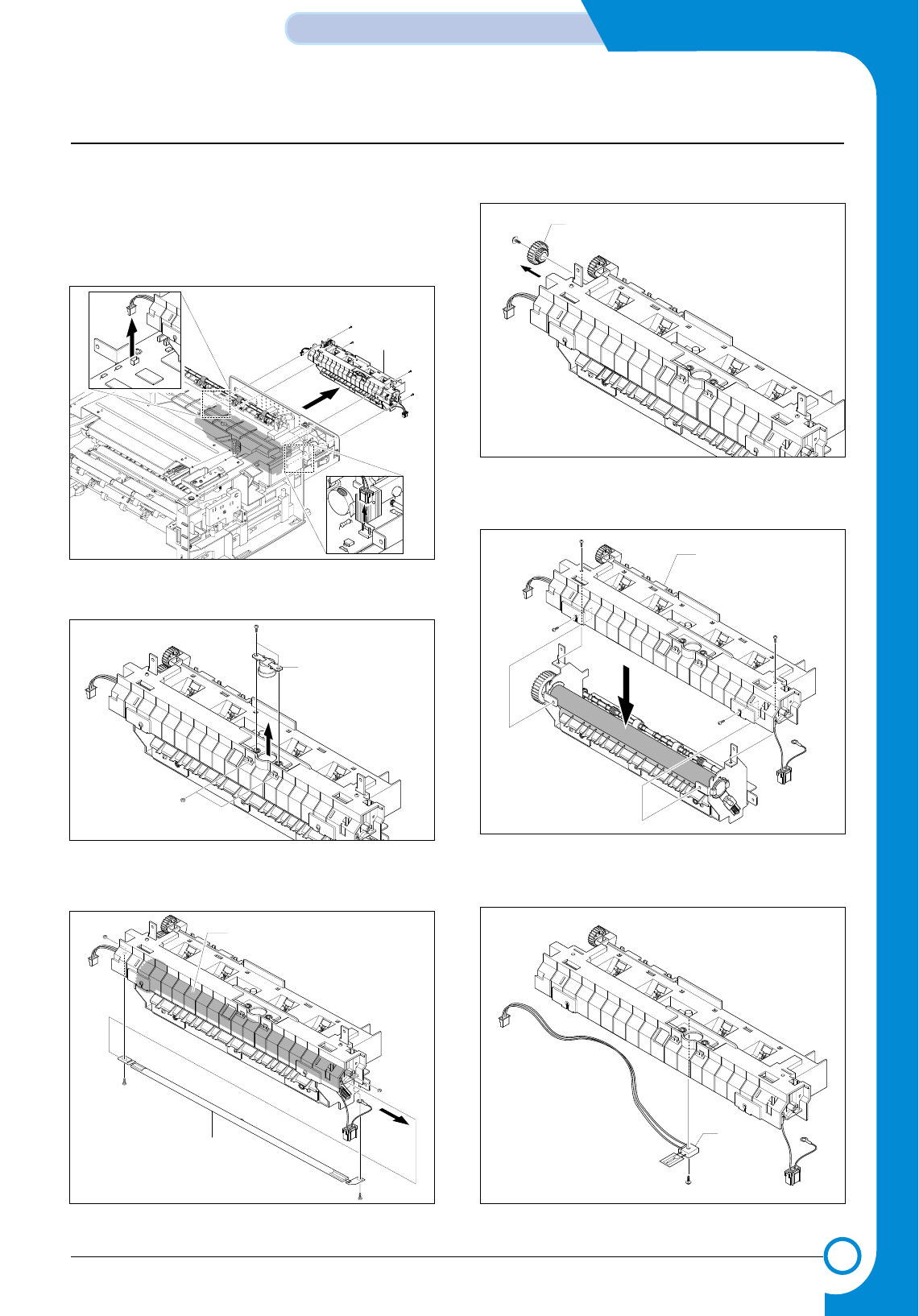

1. Before you remove the Fuser, you should
remove:
- Top Cover(see page 3-2)
2. Unplug two connectors(Block) from the boards,
then remove four screws.
3. Remove two screws and take the Thermostat
out of the Fuser.
4. Remove two screws and take the Halogen
Lamp out of the Heat Roller.
5. Remove one screw and take the Idle Gear out.
6. Remove four screws and divide the Fuser into
two parts
7. Remove the Thermister from the Fuser Cover.
Idle Gear
Fuser Cover
Fuser Ass'y
Thermostat
Halogen Lamp
Heat Roller
3.3 Fuser
Thermister
