CONNECTING YOUR GXV IP VIDEO PHONE

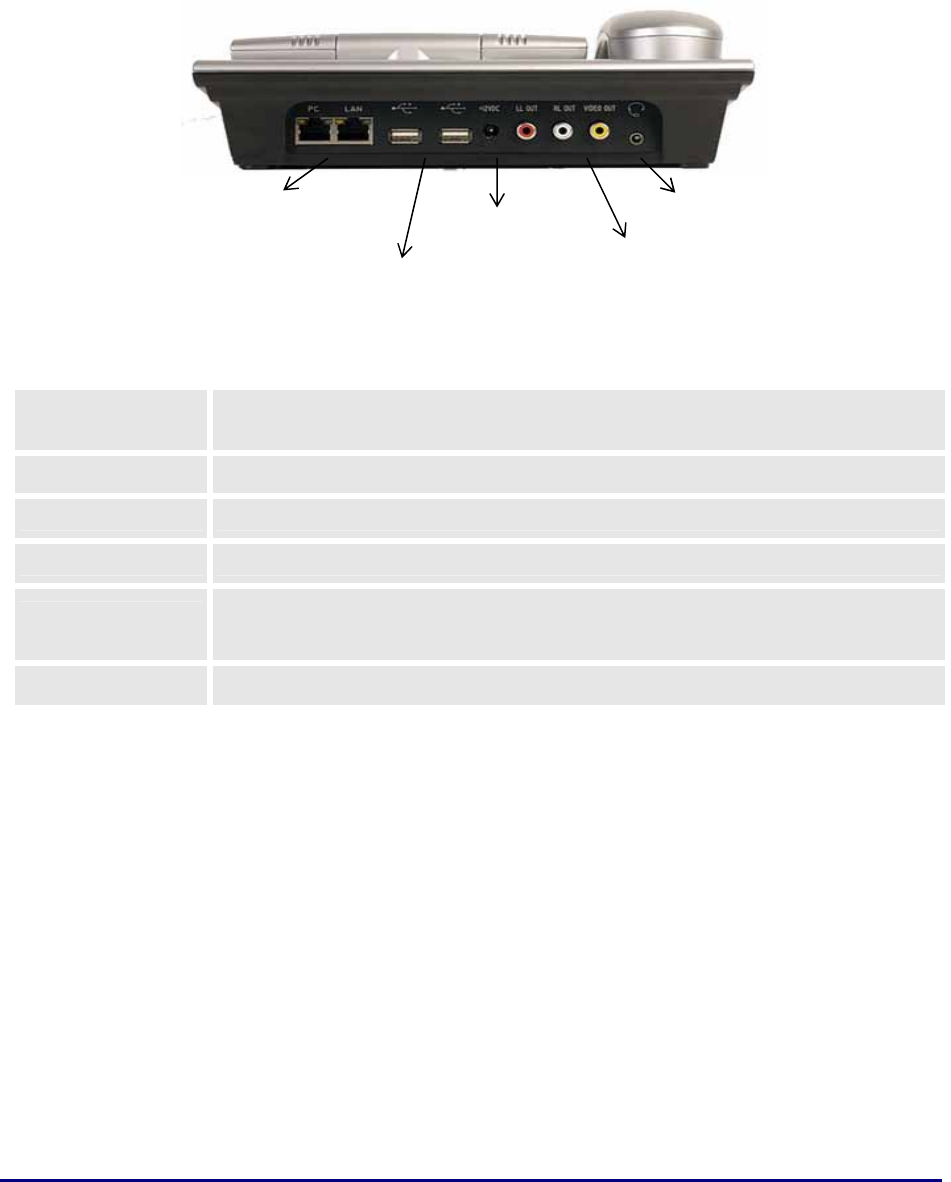

FIGURE 1: CONNECTING THE GXV-3000
NETWORK/PC RJ-45
10/100Mbps ports
2x USB ports
Power jack
Video/Audio jack
Headset Jack
T
ABLE 1: DEFINITIONS OF THE GXV-3000 CONNECTORS
USB
USB Interface for external USB device like flash to store captured image, ring
tones, phone address books, etc.
NETWORK
10/100Mbps RJ-45 port for uplink to Ethernet.
PC
10/100Mbps RJ-45 port for connecting PC as switch mode
Power Jack
12V DC power port
Video/Audio
Jacks
RCA Output Interface to external display like TV set
Headset Jack
2.5mm headset jack
Grandstream Networks, Inc. GXV-3000 User Manual Page 4 of 46
Firmware 1.0.1.7 Updated: 06/2007
