Troubleshooting
Solving Image-Quality Problems
11-15
Problems Due to Misalignment
There are two types of misalignment; vertical and horizontal, refer to page 11-20,
Color Alignment Quality Test for more information.
Misalignment between two primary colors when creating a secondary color can
cause two different effects:
If there is horizontal misalignment of the colors this will create banding.
If there is vertical misalignment of the colors, it will create gaps or overlaps
between colors, see
Example C.
Problem See: Corrective Action
1 Black, cyan, magenta and
yellow columns are correct
but banding in any, or all of
the secondary color columns.
This is an indication that there
is a horizontal misalignment.
- Refer to 11-20, Color Alignment
Quality Test and verify this problem.
See the recommended actions.

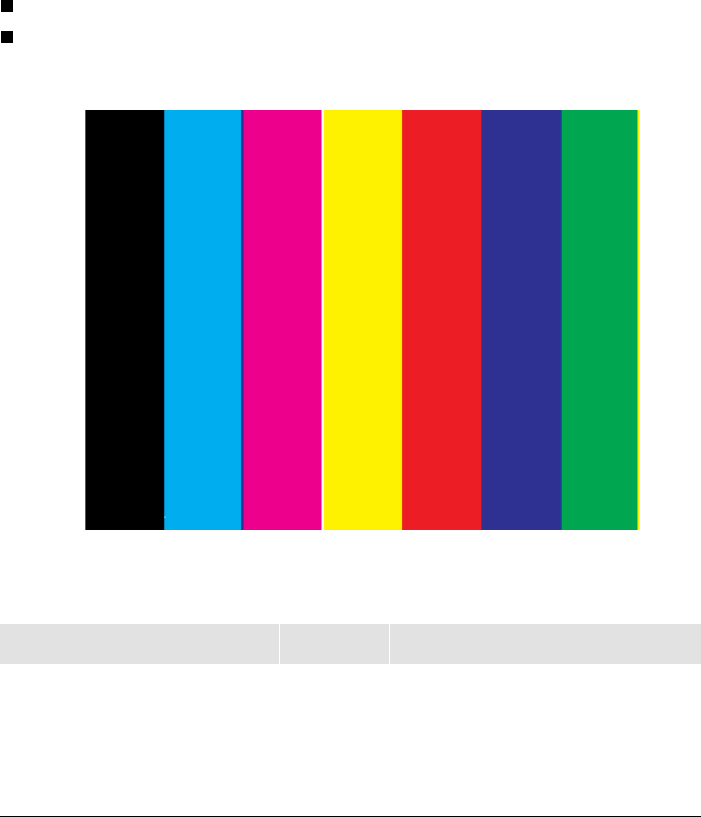

Example C
