A security cable provision is available on the rear of the monitor to help prevent theft. The cable and
lock are available separate and can be purchased from HP.

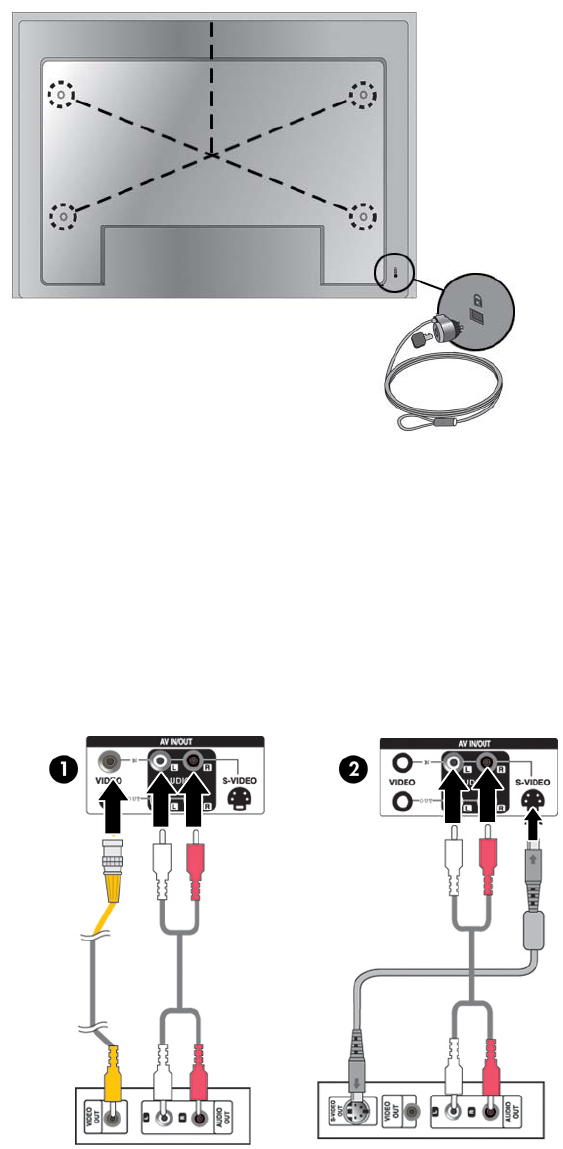

Figure 3-22 VESA Mounting Holes
Connecting Video Input
1. Connect the video cable (not included) as shown in the following illustration, and then connect
the power cable.
a. When connecting with a BNC cable (1), connect the input terminal to the monitor and VCR/
DVD receiver.
b. When connecting with an S-Video cable (2), connect the S-Video input terminal to the
monitor and VCR/DVD receiver to watch high image quality movies.
Figure 3-23 Connecting with the BNC and Audio Cables to VCR/DVD Receiver
2. Select an input signal.
16 Chapter 3 Setting Up the Monitor ENWW
