CHAPTER 6 PORT FUNCTIONS

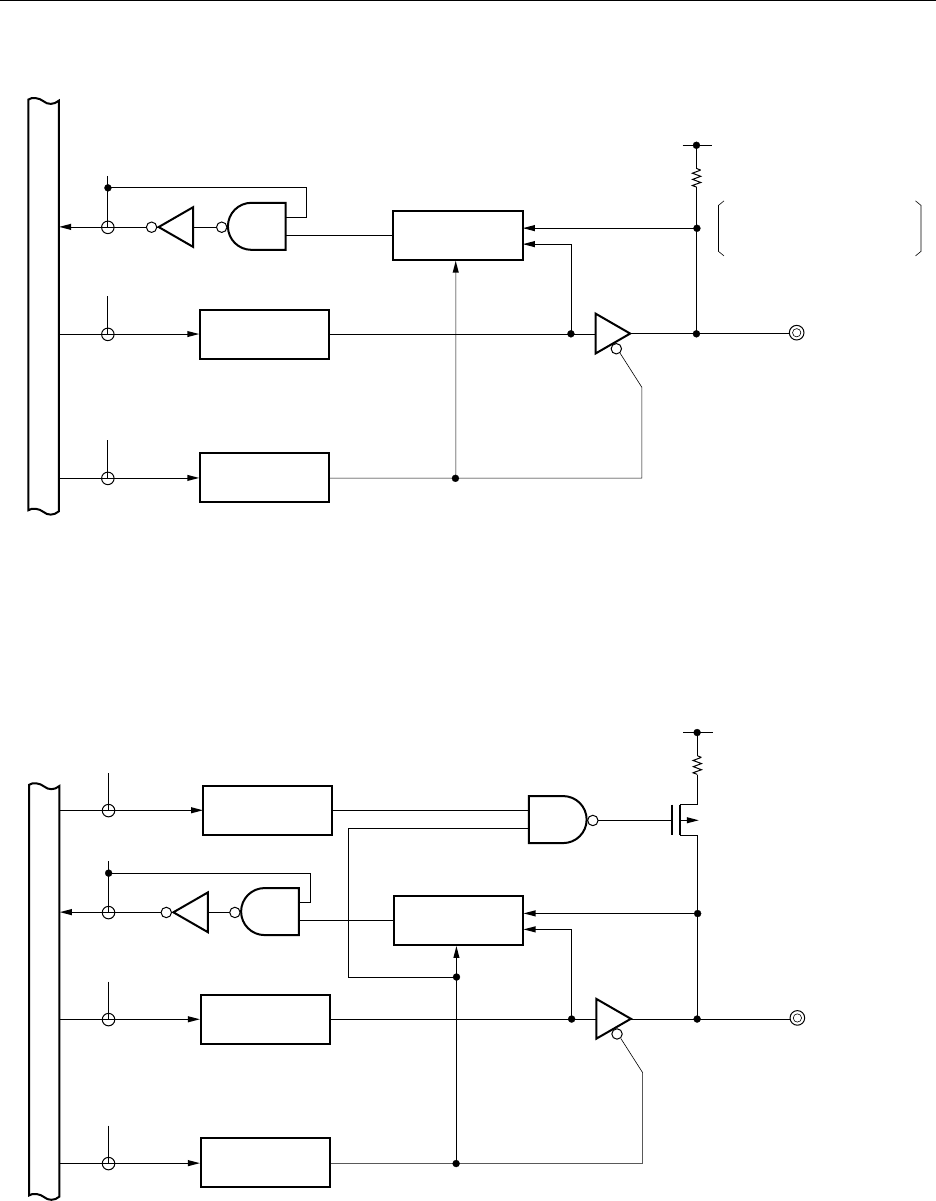

Figure 6-18. Block Diagram of P90 to P93
PM : Port mode register
RD : Port 9 read signal
WR : Port 9 write signal
Figure 6-19. Block Diagram of P94 to P96
PUO : Pull-up resistor option register
PM : Port mode register
RD : Port 9 read signal
WR : Port 9 write signal
Mask Option Resistor
WR
PM
WR
PORT
RD
V
DD
Selector
Output Latch
(P90 to P93)
PM90 to PM93
Internal bus
P90 to P93
Mask ROM versions only.
PD78P078 and 78P078Y
have no pull-up resistor.
ยต
P-ch
WRPM
WRPORT
RD
WR
PUO
VDD
Selector
PUO9
Output Latch
(P94 to P96)
PM94 to PM96
Internal bus
P94 to P96
