CHAPTER 17 SERIAL INTERFACE CHANNEL 0 (
µ
PD78078 SUBSERIES)
338
(d) Command and data
The master device transmits commands to, and transmits/receives data to/from the slave device
selected by address transmission.

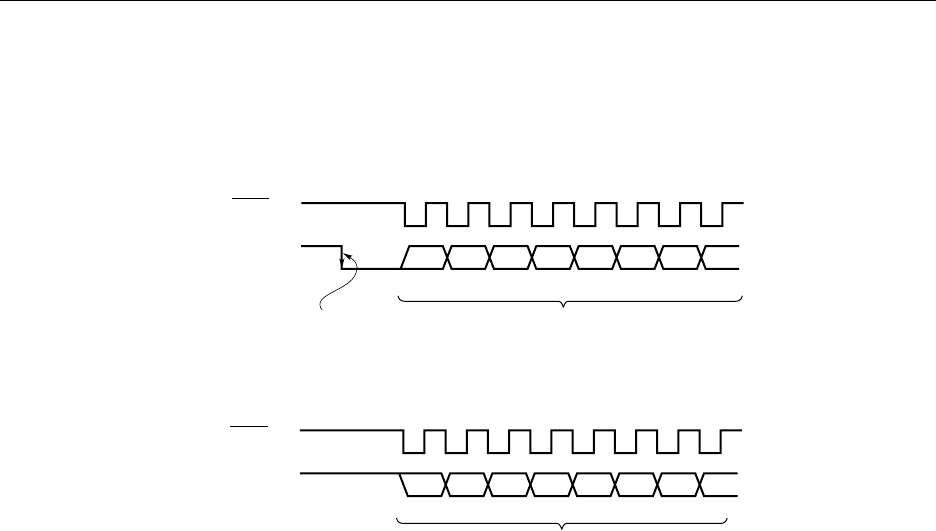

Figure 17-16. Commands
Figure 17-17. Data
8-bit data following a command signal is defined as “command” data. 8-bit data without command signal
is defined as “data”. Command and data operation procedures are allowed to determine by user
arbitrarily according to communications specifications.
SCK0
C7 C6 C5 C4 C3 C2 C1 C0
12345678
SB0 (SB1)
Command
Command Signal
SCK0
D7 D6 D5 D4 D3 D2 D1 D0
12345678
SB0 (SB1)
Data
