345
CHAPTER 17 SERIAL INTERFACE CHANNEL 0 (
ยต
PD78078 SUBSERIES)

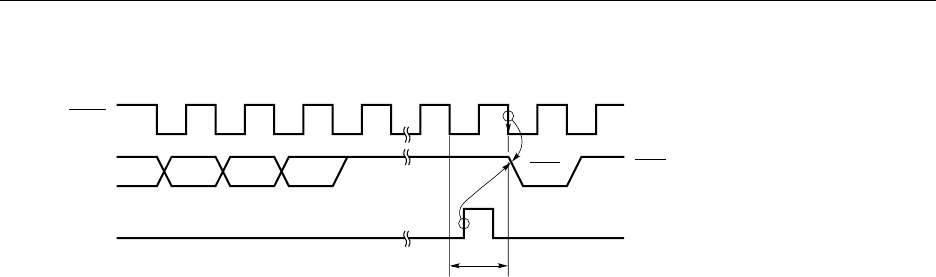

Figure 17-22. ACKT Operation
Caution Do not set ACKT before termination of transfer.
SCK0
6
SB0 (SB1)
ACKT
7 8 9
D2 D1 D0 ACK
When set during
this period
ACK signal is output for
a period of one clock
just after setting
