Actiontec 54 Mbps Wireless DSL Gateway User Manual
47
Chapter 4 Using Advanced Setup
128-bit WEP - 128-bit WEP requires one or more keys, comprising 13 hexadecimal
pairs. A hexadecimal digit consists of alphanumeric characters ranging from 0-9 or
A-F. An example of a 128-bit WEP key is: 3D-44-FE-6C-A1-EF-2E-D3-C4-21-74-5D-
B1. To create a 128-bit WEP key, activate Key 1 by clicking in the appropriate circle,
then enter 13 hexadecimal digit pairs in the Key text box. After activating 128-bit
WEP on the Gateway, a computer with wireless capability can join the network
only if this key is entered in the computer’s wireless encryption scheme.
256-bit WEP - 256-bit WEP requires one or more keys, comprising 29 hexadecimal
pairs. A hexadecimal digit consists of alphanumeric characters ranging from 0-9
or A-F. To create a 256-bit WEP key, activate Key 1 by clicking in the appropriate
circle, then enter 29 hexadecimal digit pairs in the Key text box. After activating
256-bit WEP on the Gateway, a computer with wireless capability can join the net-
work only if this key is entered in the computer’s wireless encryption scheme.
☞
Note: Not all wireless adapters support 128- or 256-bit WEP.
Ensure that all adapters installed in the networked computers
support 128- or 256-bit WEP before activating.
WEP+802.1x

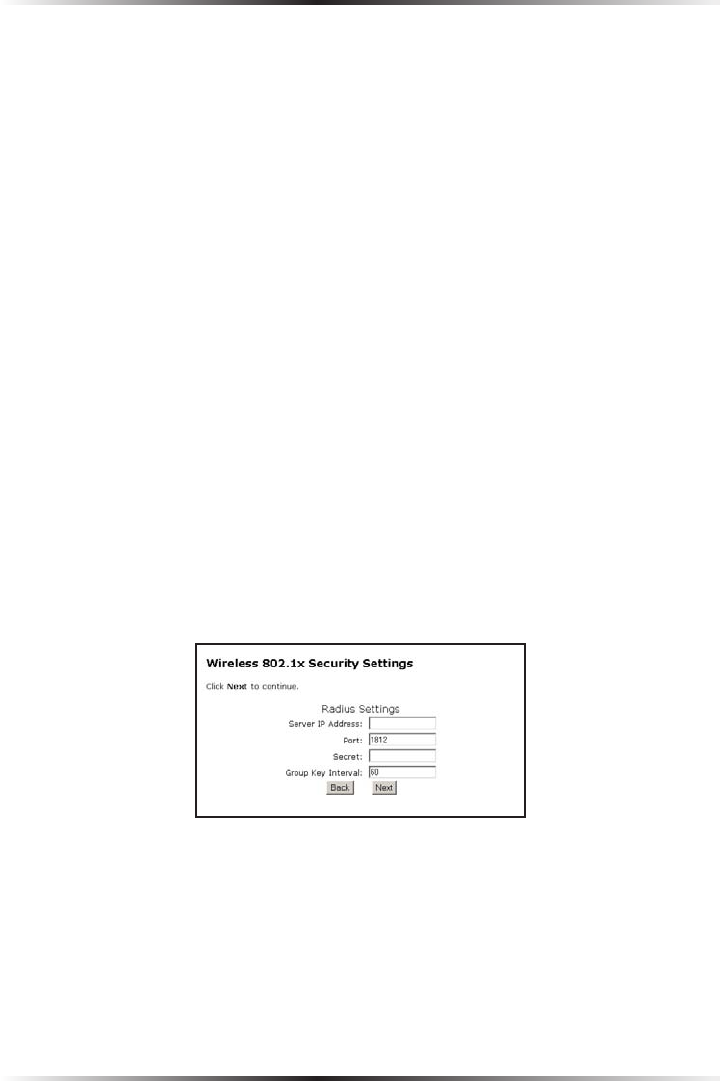

Activating WEP+802.1x and clicking Next in the Wireless Settings screen gener-
ates the “Wireless 802.1x Security Settings” screen. This setting is for enterprise
networks only, and should be accessed by experienced information systems spe-
cialists only.
To set up WEP+802.1x security, enter the IP address of the RADIUS server in the
“Server IP Address” text box, and the “Secret” key (for communication between
the RADIUS server and the Gateway) in the “Secret” text box. The “Port” and
“Group Key Interval” values should remain the same
