BWS-136 User Manual_amend.doc - 19 -

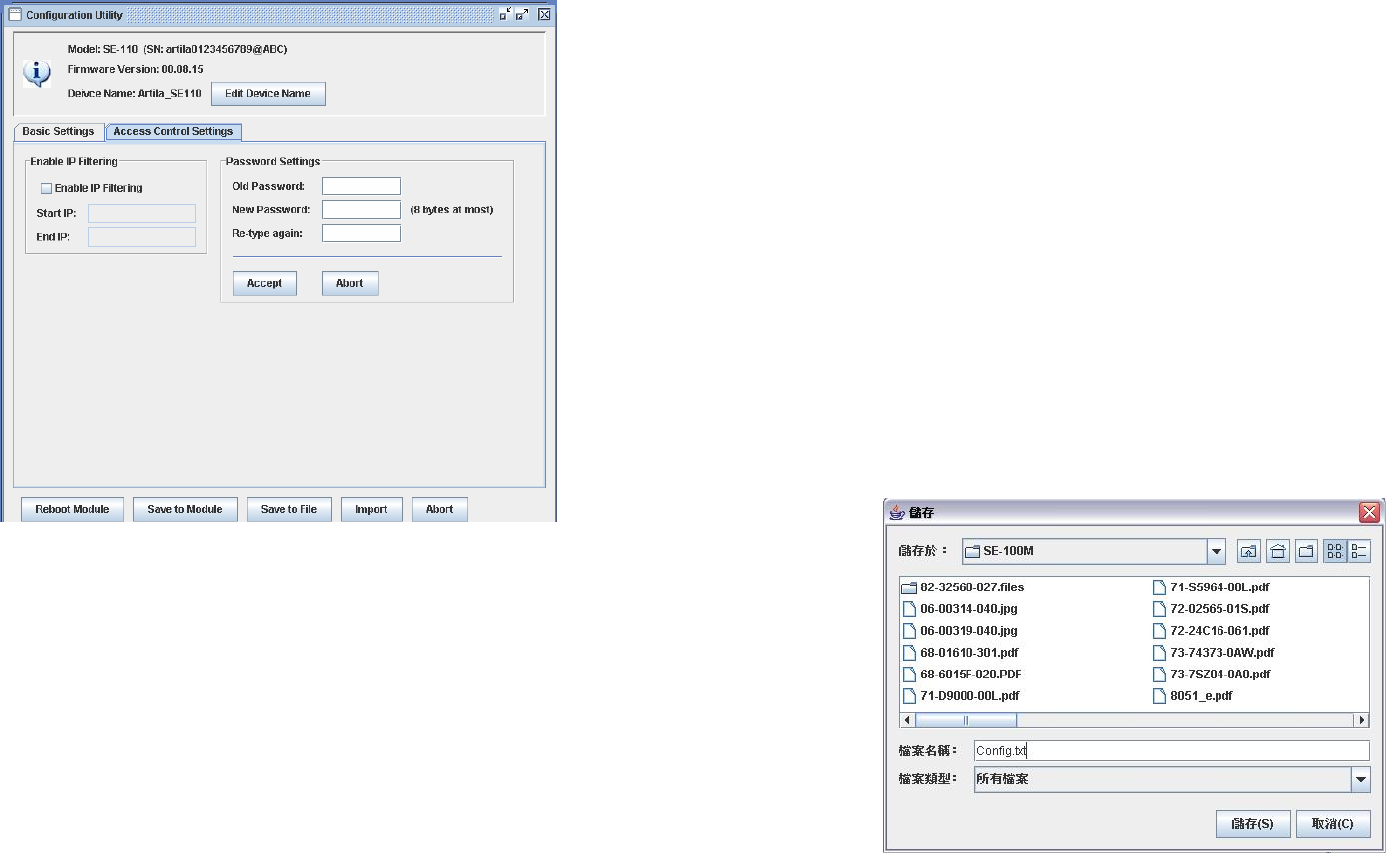

Enable IP Filtering: When this option is checked, user can
specify the starting IP address and ended IP address which are
allowed to access BWS-136 TCP port in order to prevent
unauthorized access.
Password Settings: Enter the new password will enable the
password authentication. Password is required to login Java
Configuration and Web configuration Pages in the next entry.
BWS-136 User Manual_amend.doc - 20 -
Save Configuration
After the all the settings are configured, click to the Save to
Module button
to save the settings to the module. The new
settings will be effective after the reboot of module by clicking the
Reboot Module
button. If the IP address had been modified,
please do broadcast search or search by IP again to find the
BWS-136 module.
Save Configuration to File
You can also save current configuration to file by click the Save to
File button. A new window to specify the path of the file will pop
out as follow:
