BWS-136 User Manual_amend.doc - 15 -
3
Java Configuration
Install Java Configuration Utility
To install the Java Configuration Utility, you can simply copy
manager.jar to the desired folder. Double click on the icon will
start the manager.jar
Once this program started, it will perform a broadcast search to
find the Aport device in the network. If you cannot find the
Aport module and you know the IP address of the module, you can
click Search by IP item and specify the IP address to find the
BWS-136 User Manual_amend.doc - 16 -
BWS-136. The default IP address of BWS-136 is 192.168.16.10.

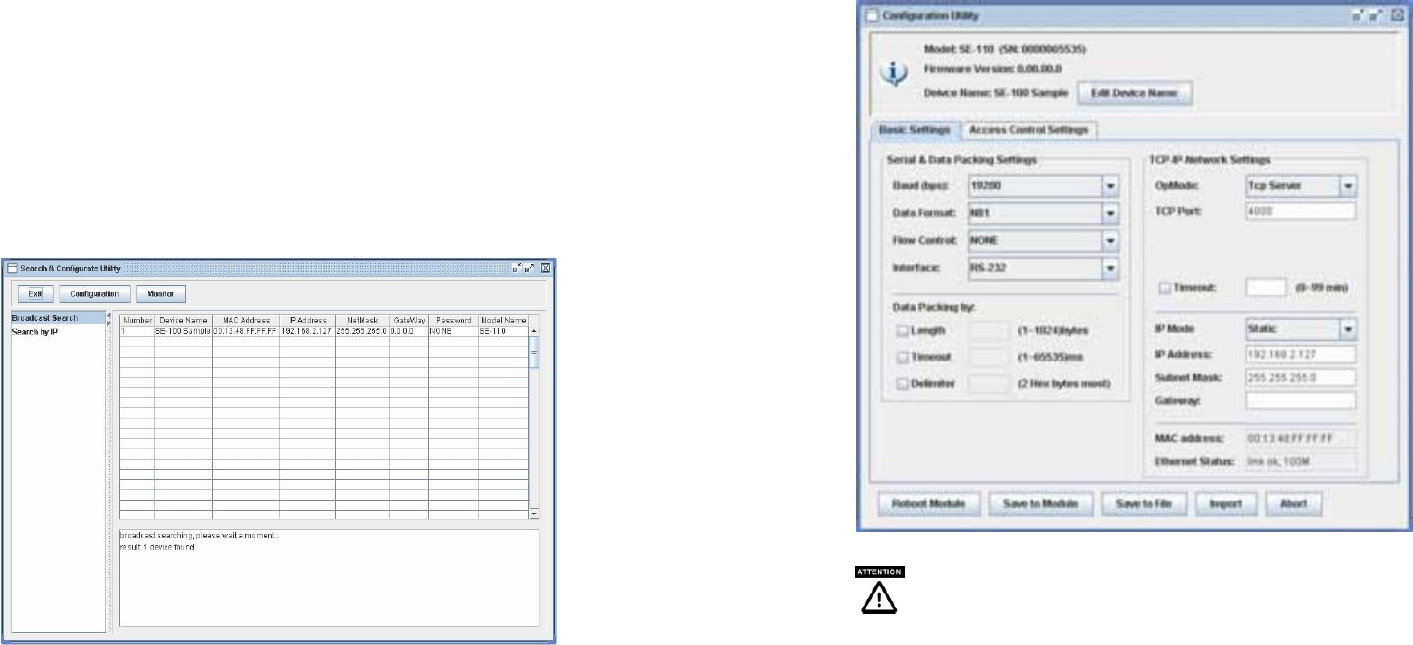

Click on the row of the BWS-136 setting, the configuration
window will open as follow:
When the SW1 is set to Console mode, BWS-136 cannot
be discovered by the Configuration Utility and
the configurations are controlled by serial console.
When enter the configuration mode, the READY LED will be
flashing and TCP Data Port will be disabled and data transfer
between serial port and Ethernet port will be stopped.
