Take Apart Analog Board, Original Version - 84
6 Disconnect these cables
from the analog board:
• 6-pin power-supply-
to-analog-board cable
(P102)
• 10-pin power-
supply-to-analog-
board cable (P704)
Logic board connector
cable (P101)
• Single-pin degauss
cable
7 Remove the analog and
video boards assembly.

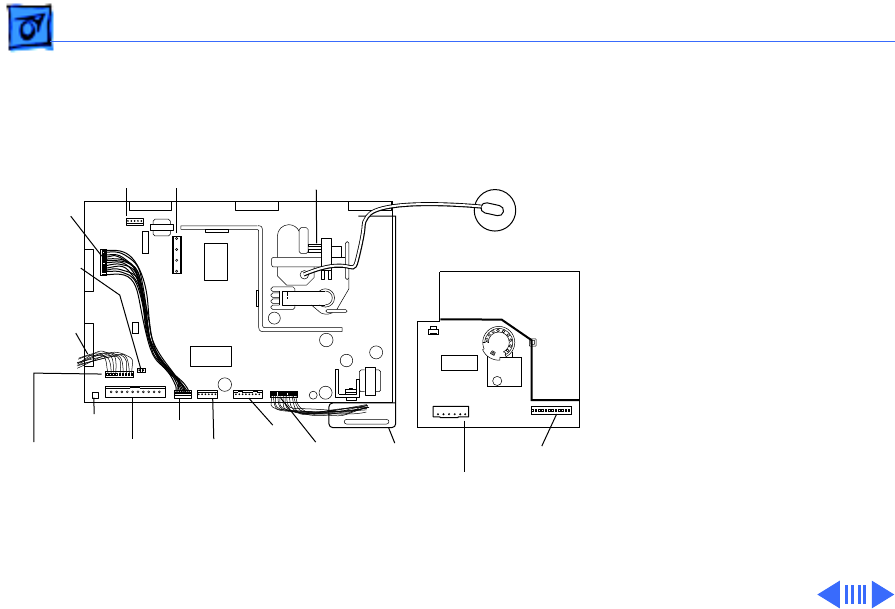

P805
Video
Test Pins
Flyback
Transformer
CRT Video Board
P302
12-Pin
(non
removable)
to Analog
Board
P301
6-Pin
Rear
Bracket
Rev. A Analog Board
Analog-to
Video-
Board
Cable
Degauss
P101
Logic
Board
P803
Speaker
P701
Yoke
P102
6-Pin
Power
Supply
P704
10-Pin
Power
Supply
P702
Video
Board
(Do Not
Disconnect)
P804
Do Not
Dis-
connect
Do Not
Dis-
connect
