5200/5300 Adjustments (not for 5260, 5280) High Voltage - 42
4 Using a fine-tip plastic
adjustment tool, set the
high-voltage
adjustment control
(VR501 on Rev. A, or
VR702 on Rev. B
pictured on next page) so
the voltmeter reads 29.5
volts DC (± 0.1 volt).
Note: The VR501
control is inside the
analog board.

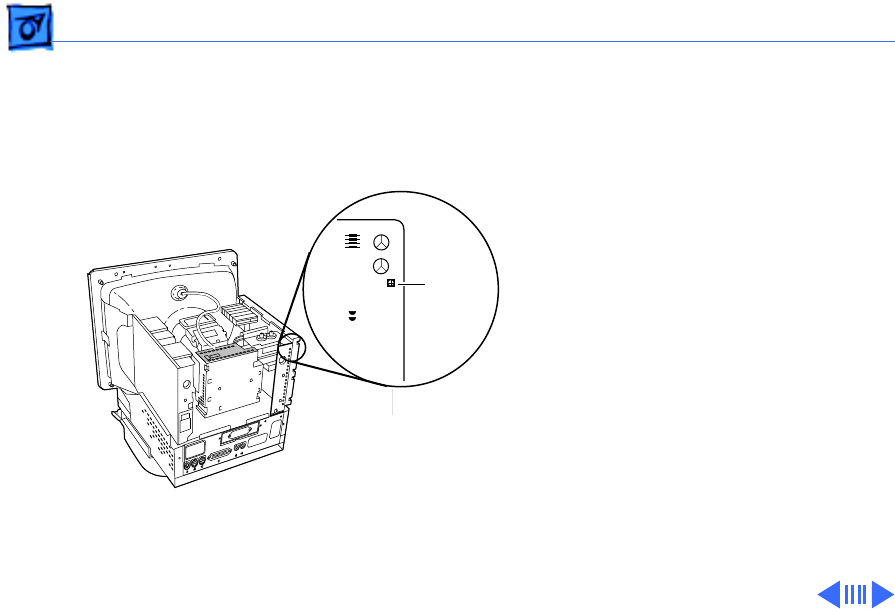

VR501
Rev. A Analog Board
Inside
