ASUS A88X-PLUS
1-3
1.2.4 Layout contents
A88X-PLUS

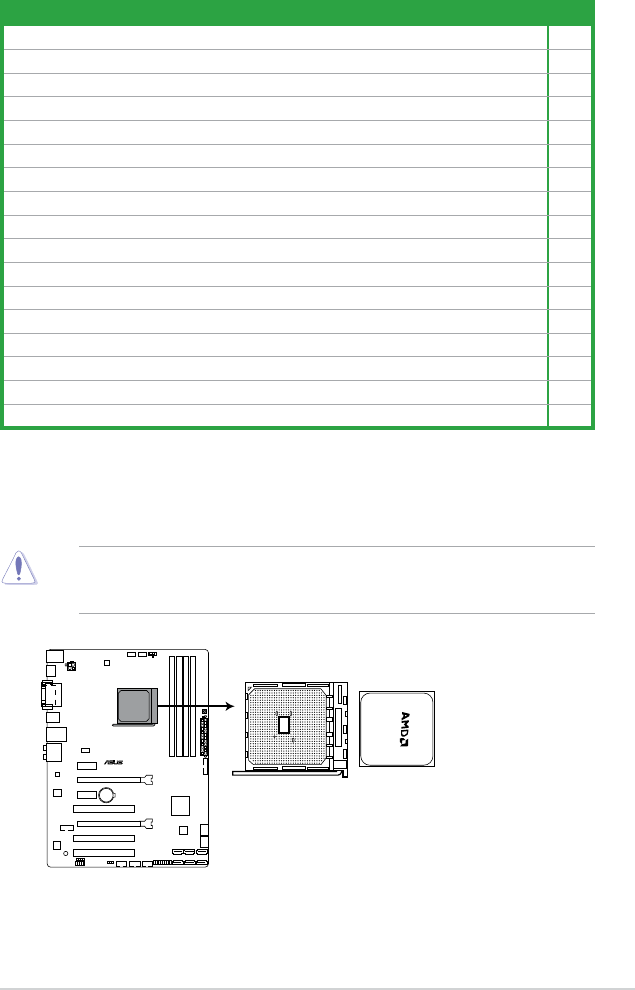

A88X-PLUS CPU socket FM2+
1.3 Accelerated Processing Unit (APU)
This motherboard comes with a FM2+ socket designed for AMD
®
A-series and Athlon™
processors.
Ensure that you use an APU designed for the FM2+ socket. The APU ts in only one
correct orientation. DO NOT force the APU into the socket to prevent bending the pins and
damaging the APU!
Connectors/Jumpers/Slots/LED Page
1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-15
2. CPU and chassis fan connectors (4-pin CPU_FAN, and 4-pin CHA_FAN1/2)
1-14
3. AMD FM2+ socket
1-3
4. GPU Boost switch
1-21
5. GPU Boost LED (GPU_LED)
1-22
6. DDR3 DIMM slots
1-7
7.
MemOK! button 1-20
8. DRAM LED
1-22
9. USB 3.0 connector (20-1 pin USB3_34)
1-19
10. SATA 6.0 Gb/s connectors (7-pin SATA6G_1~8)
1-16
11. System panel connector (20-8 pin PANEL)
1-17
12. USB 2.0 connectors (10-1 pin USB56, USB78, USB910)
1-19
13. Clear RTC RAM (3-pin CLRTC)
1-11
14. Digital audio connector (4-1 pin SPDIF_OUT)
1-14
15. Front panel audio connector (10-1 pin AAFP)
1-18
16. Standby power LED (SB_PWR)
1-21
17. Serial port connector (10-1 pin COM)
1-18
