1-24 Chapter 1: Product introduction
Refer to the audio conguration table for the function of the audio ports in 2, 4,
or 6,-channel conguration.
1.10 Connectors

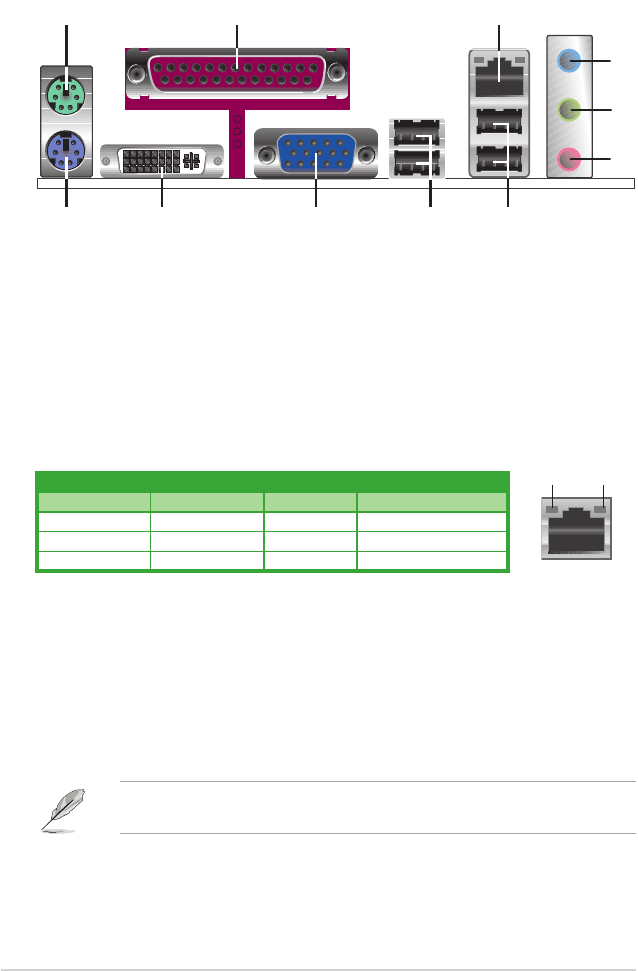

1.10.1 Rear panel connectors
1. PS/2 mouse port (green).
This port is for a PS/2 mouse.
2. Parallel port.
This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port
. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub.
1
11 7
2 3
10
4
5
6
9 8
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
4. Line In port (light blue).
This port connects a tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel/ 6-channel conguration, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink).
This port connects a microphone.
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF
10 Mbps connection
Orange Linked ORANGE
100 Mbps cconnection
BLINKING Data activity GREEN
1 Gbps connection
