Chapter 2: Hardware information
11. Internal audio connectors (4-pin CD_IN1, AUX1)
(on audio models only)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
®

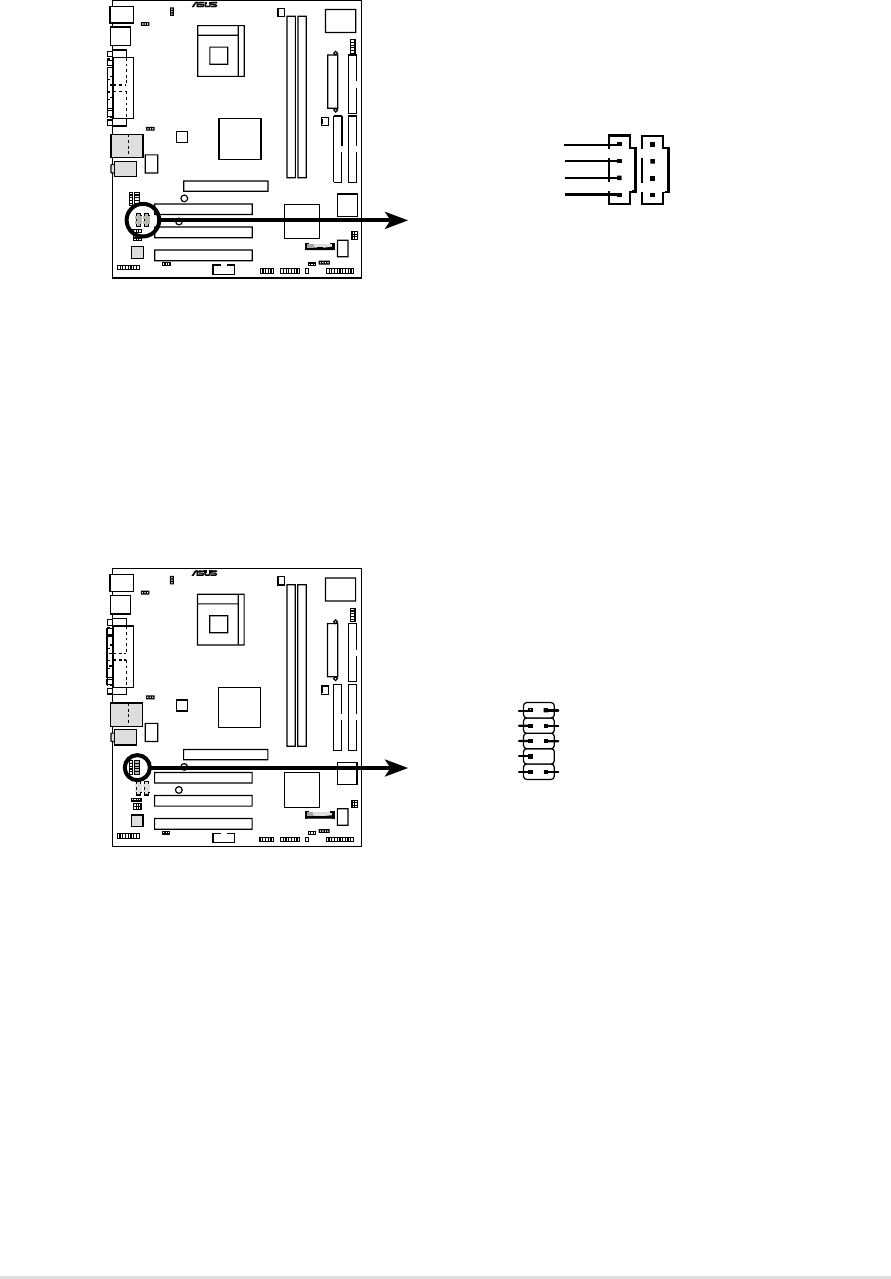

P4B533-VM
P4B533-VM Front Panel Audio Connector
FP_AUDIO
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR +5VA
AGND
12. Front panel audio connector (10-1 pin FP_AUDIO)
(on audio models only)
This is an interface for the Intel front panel audio cable that allow
convenient connection and control of audio devices.
®
P4B533-VM
P4B533-VM Internal Audio Connectors
CD_IN1(Black)AUX1(White)
Right Audio Channel
Left Audio Channel
Ground
Ground
