Chapter 2: Hardware information
2.4 Central Processing Unit (CPU)
2.4.1 Overview
The motherboard comes with a surface mount 478-pin Zero Insertion
Force (ZIF) socket. The socket is designed for the Intel
®
Pentium
®
4
Processor in the 478-pin package with 512KB L2 cache on 0.13 micron
process. This processor includes the Intel
®
NetBurst micro-architecture
that features the hyper-pipelined technology, rapid execution engine,
533/400MHz system bus, and execution trace cache. Together, these
attributes improve system performance by allowing higher core
frequencies, faster execution of integer instructions, and data transfer
rates of 3.2GB/s and 4.2GB/s.
This motherboard will support Intel
®
Pentium
®
4 CPUs with Hyper-
Threading technology when available.

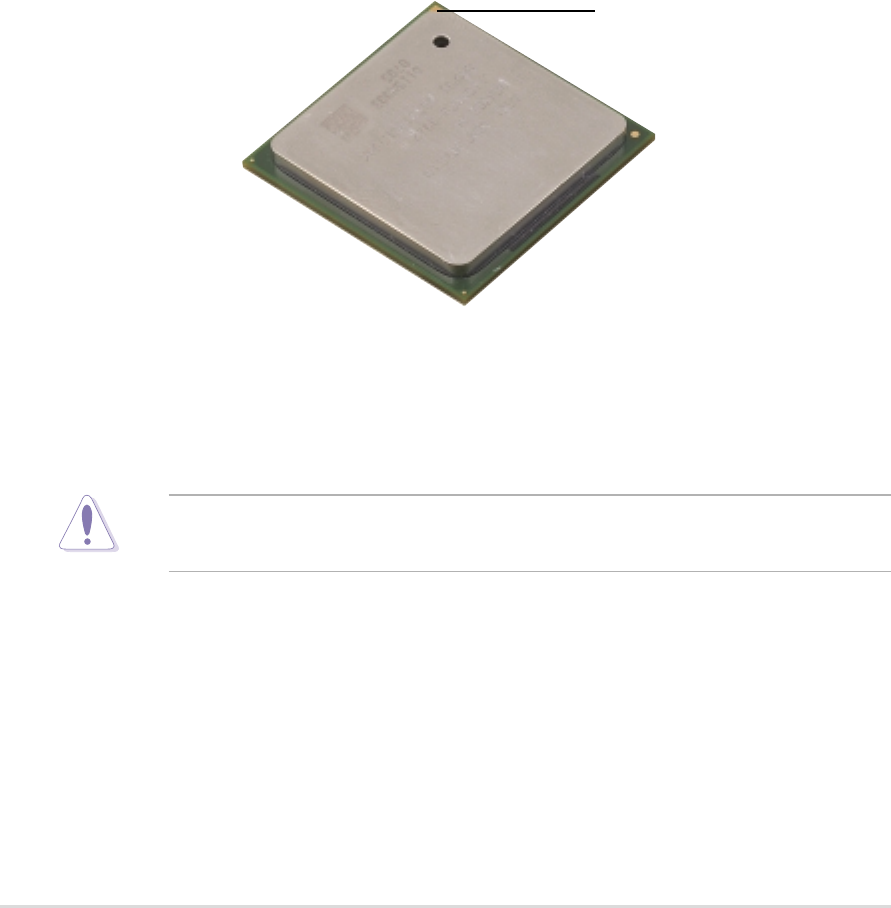

Note in the illustration that the CPU has a gold triangular mark on one
corner. This mark indicates the processor Pin 1 that should match a
specific corner of the CPU socket.
Incorrect installation of the CPU into the socket may bend the pins and
severely damage the CPU!
Gold Mark
