Chapter 2: Hardware information
2.7 Jumpers
P4PE
®

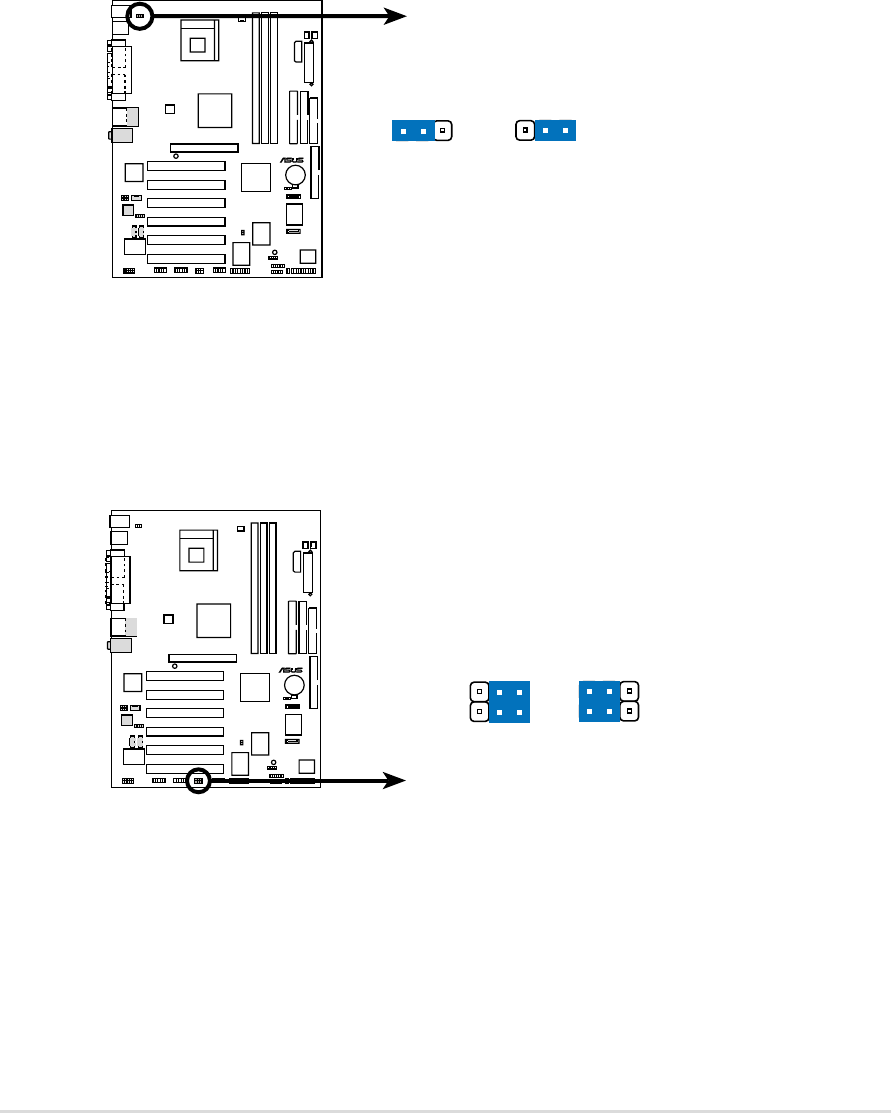

P4PE Keyboard Power Setting
KBPWR1
+5V
(Default)
+5VSB
23
12
1. Keyboard power (3-pin KBPWR1)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) if you wish to wake up the
computer when you press a key on the keyboard (the default is the
Space Bar). This feature requires an ATX power supply that can supply
at least 1A on the +5VSB lead, and a corresponding setting in the
BIOS (see section 4.5.1 Power Up Control).
2. Wireless PCI and USB settings (3-pin WPCI_USB)
These jumpers are reserved. DO NOT change the default settings.
P4PE
®
P4PE WPCI_USB Setting
WPCI_USB
Wireless
PCI_USB
(Default)
35
46
1
3
24
Original
PCI
reserved pin
