ASUS P4T533-C motherboard user guide
39
P4T533-C

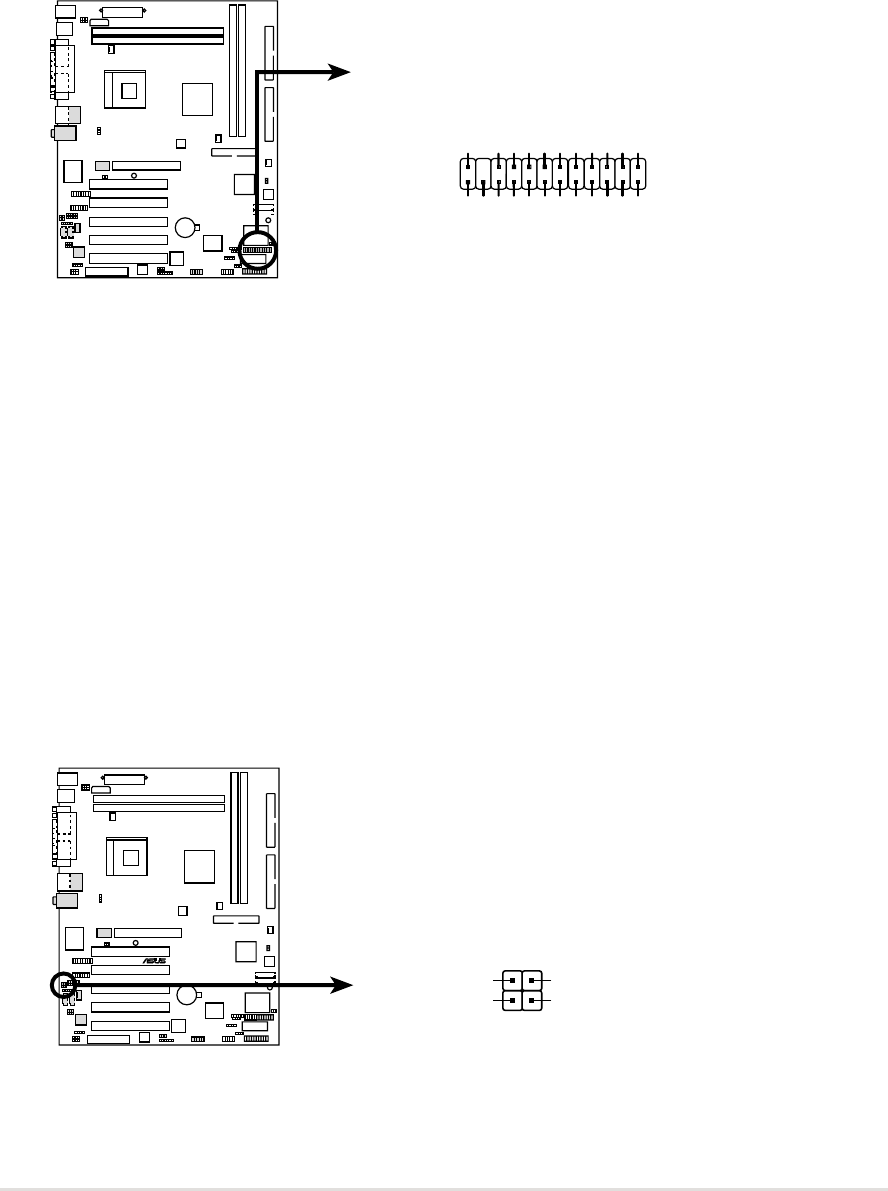

P4T533-C iPanel Connector
AFPANEL
+5VSB
NC
CHASSIS#
+5 V
PCIRST#
GND
CIRRX
EXTSMI#
MLED-
NC
BATT
NC
SMBDATA
GND
+3VSB
IRRX
IRTX
NC
NC
NC
+5V SMBCLK
NC
20. ASUS iPanel / Infrared Connector (24-1 pin AFPANEL)
This connector supports an optional ASUS iPanel, an easy to access
drive bay with front I/O ports, status LEDs, and space reserved for a hard
disk drive. Alternatively, if not using an ASUS iPanel, connect an optional
wireless transmitting and receiving infrared module to the SIR connector
for wireless transmitting/remote control functions through an external
infrared module.
P4T533-C
®
P4T533-C Internal Line Out Connectors
FP_LO_SWL
BLOL
FLOL
BLOR
FLOR
FP_LO_SWR
21. Line-out Selector Jumpers (2 x 2 pin FP_LO_SWL, FP_LO_SWR)
By default, these jumpers are shorted (jumpers on) to route the signal
from the audio controller to the rear panel Line Out jack to make it available
for audio out devices such as speakers or a headphone. If you connect
the Intel Front Panel audio cable to the IPANEL connector, (see above)
then remove the caps from these two jumpers to permit automatic
switching of audio signals between the rear panel Line Out jack and the
Intel audio cable.
