ASUS P5LD2-VM DHASUS P5LD2-VM DH
ASUS P5LD2-VM DHASUS P5LD2-VM DH
ASUS P5LD2-VM DH
1-291-29
1-291-29
1-29
3.3.
3.3.
3.
ITE IDE connector (40-1 pin PRI_EIDE [red])ITE IDE connector (40-1 pin PRI_EIDE [red])
ITE IDE connector (40-1 pin PRI_EIDE [red])ITE IDE connector (40-1 pin PRI_EIDE [red])
ITE IDE connector (40-1 pin PRI_EIDE [red])
Supported by the ITE8211F controller, this connector is for Ultra ATA
133/100/66 signal cables. This connector supports two IDE hard disk
drives for easier data storage.
4.4.
4.4.
4.
Serial ATA connectorsSerial ATA connectors
Serial ATA connectorsSerial ATA connectors
Serial ATA connectors
(7-pin SATA1, SATA2, SATA3, SATA4)(7-pin SATA1, SATA2, SATA3, SATA4)
(7-pin SATA1, SATA2, SATA3, SATA4)(7-pin SATA1, SATA2, SATA3, SATA4)
(7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
Install the Windows
®
2000 Service Pack 4 or the Windows
®
XP Service
Pack1 or later before using Serial ATA.
®

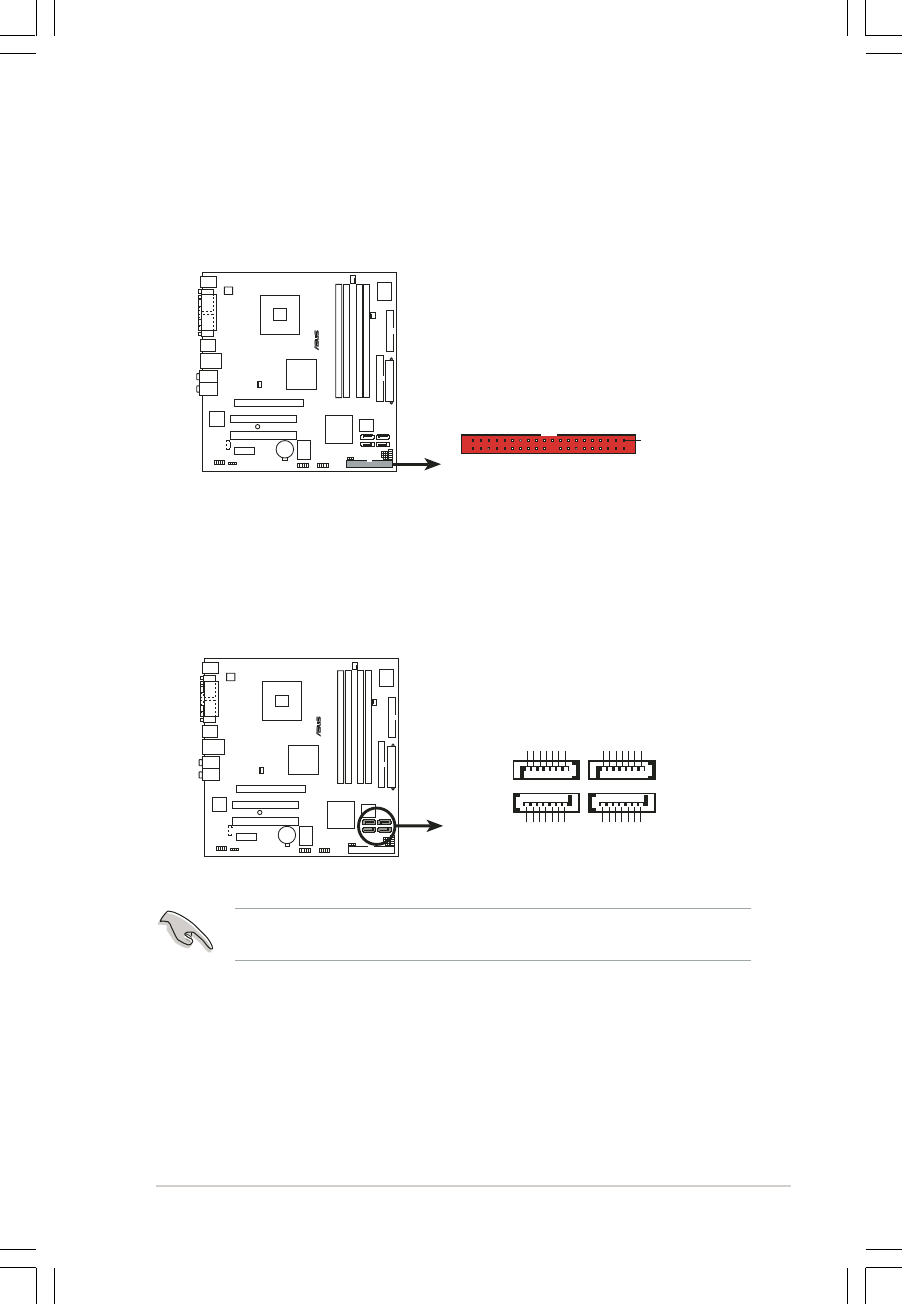

P5LD2-VM DH
P5LD2-VM DH PRI_EIDE connector
NOTE: Orient the red markings
(usually zigzag) on the IDE
cable to PIN 1.
PRI_EIDE
PIN 1
®
P5LD2-VM DH
P5LD2-VM DH SATA connectors
SATA1 SATA2
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA3 SATA4
