ASUS P5LD2-VM DHASUS P5LD2-VM DH
ASUS P5LD2-VM DHASUS P5LD2-VM DH
ASUS P5LD2-VM DH
1-331-33
1-331-33
1-33
10.10.
10.10.
10.

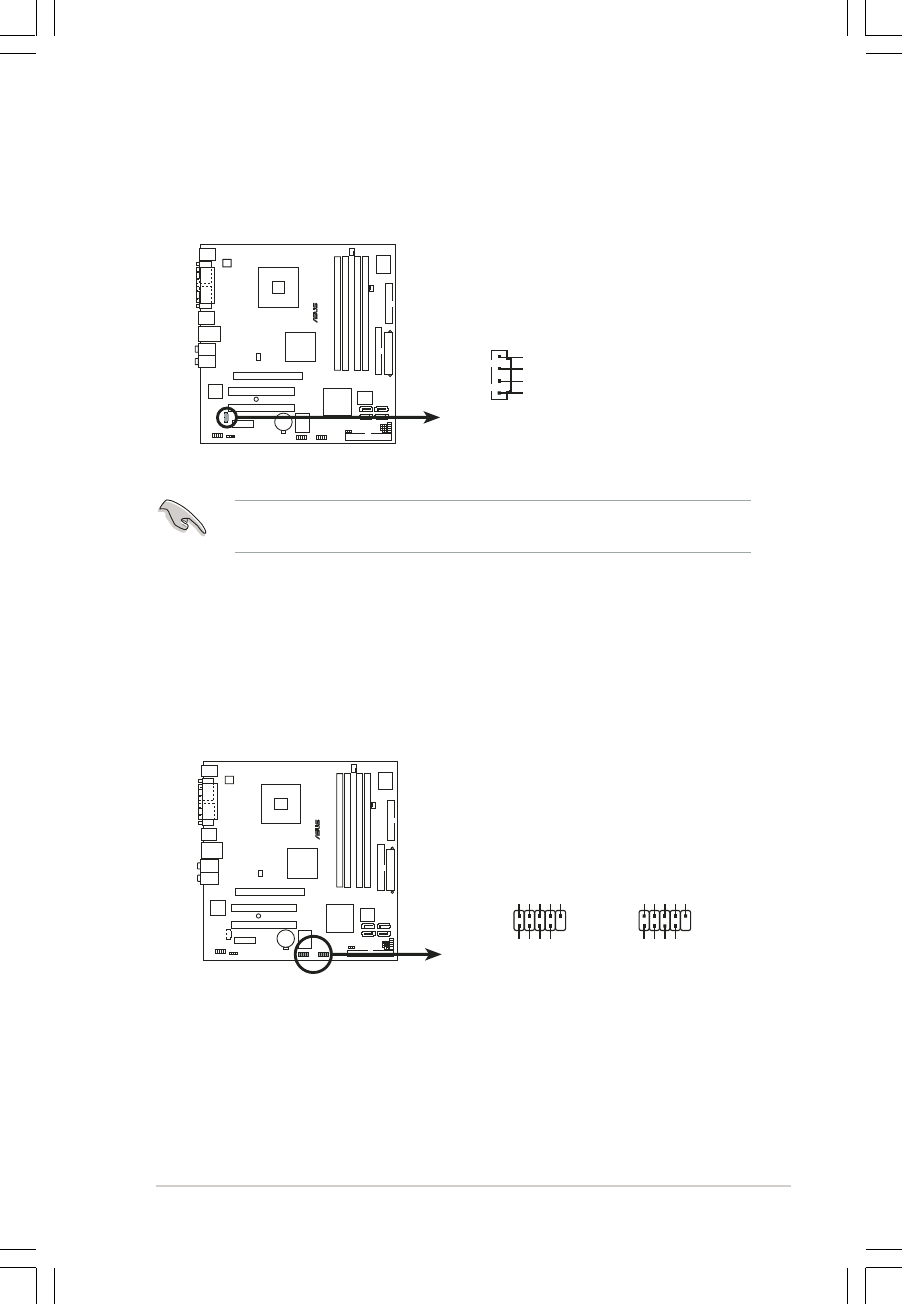

Optical drive audio connector (4-pin CD)Optical drive audio connector (4-pin CD)
Optical drive audio connector (4-pin CD)Optical drive audio connector (4-pin CD)
Optical drive audio connector (4-pin CD)
This connector is for the 4-pin audio cable that connects to the audio
connector at the back of the optical drive.
Enable the CD-IN function in the audio utility when using this
connector.
11.11.
11.11.
11.
USB connectors (10-1 pin USB56, USB78)USB connectors (10-1 pin USB56, USB78)
USB connectors (10-1 pin USB56, USB78)USB connectors (10-1 pin USB56, USB78)
USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the optional
USB module cable to any of these connectors, then install the module
to a slot opening at the back of the system chassis. These USB
connectors comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
®
P5LD2-VM DH
P5LD2-VM DH CD audio connector
CD
Right Audio Channel
Left Audio Channel
Ground
Ground
®
P5LD2-VM DH
P5LD2-VM DH USB 2.0 connectors
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
1
