2-24
Chapter 2: Hardware information

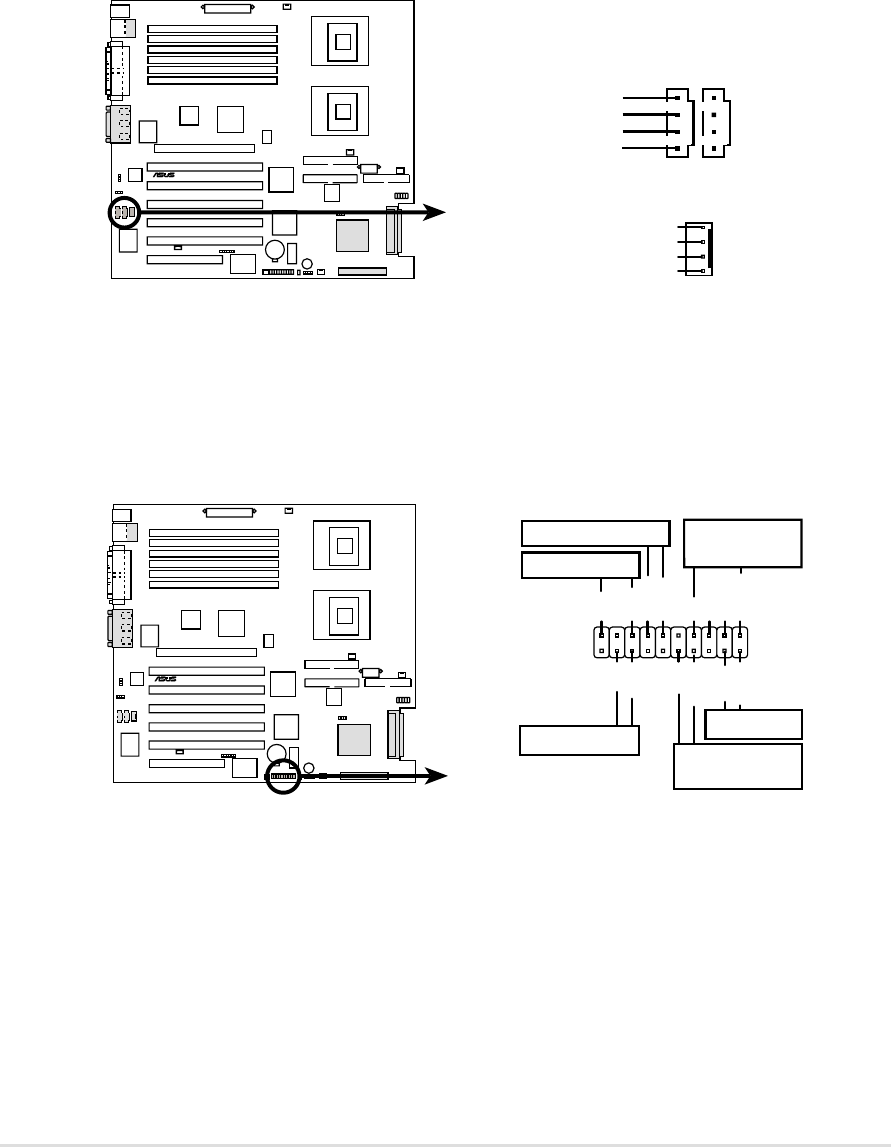

13. System panel connector (20-pin PANEL)
This connector accommodates several system front panel functions.
PR-DLSW
®
PR-DLSW System Panel Connectors
PLED
MLED
PWR
+5 V
Keylock
+5V
Speaker
Speaker
Connector
Power LED
Ground
+5 V
Reset SW
Message LED
Ground
Reset
Ground
Ground
Ground
Keyboard Lock
ATX Power
Switch*
1
11
10
20
PR-DLSW
®
PR-DLSW Internal Audio Connectors
CD1 (Black)
AUX (White)
MODEM
Right Audio Channel
Left Audio Channel
Ground
Ground
Modem-Out
Ground
Modem-In
Ground
12. Internal audio connectors (4-pin CD, AUX, MODEM)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.
