30 ASUS TX97-X User’s Manual
III. INSTALLATION
(Connectors)
III. INSTALLATION
13. IrDA / Fast IR-Compliant infrared module connector (5-pin IR)
This connector supports the optional wireless transmitting and receiving infra-
red module. This module mounts to a small opening on system cases that sup-
port this feature. You must also configure the setting through “UART2 Use
Infrared” in Chipset Features Setup to select whether UART2 is directed for
use with COM2 or IrDA. Use the five pins as shown on the Back View and
connect a ribbon cable from the module to the motherboard according to the pin
definitions.

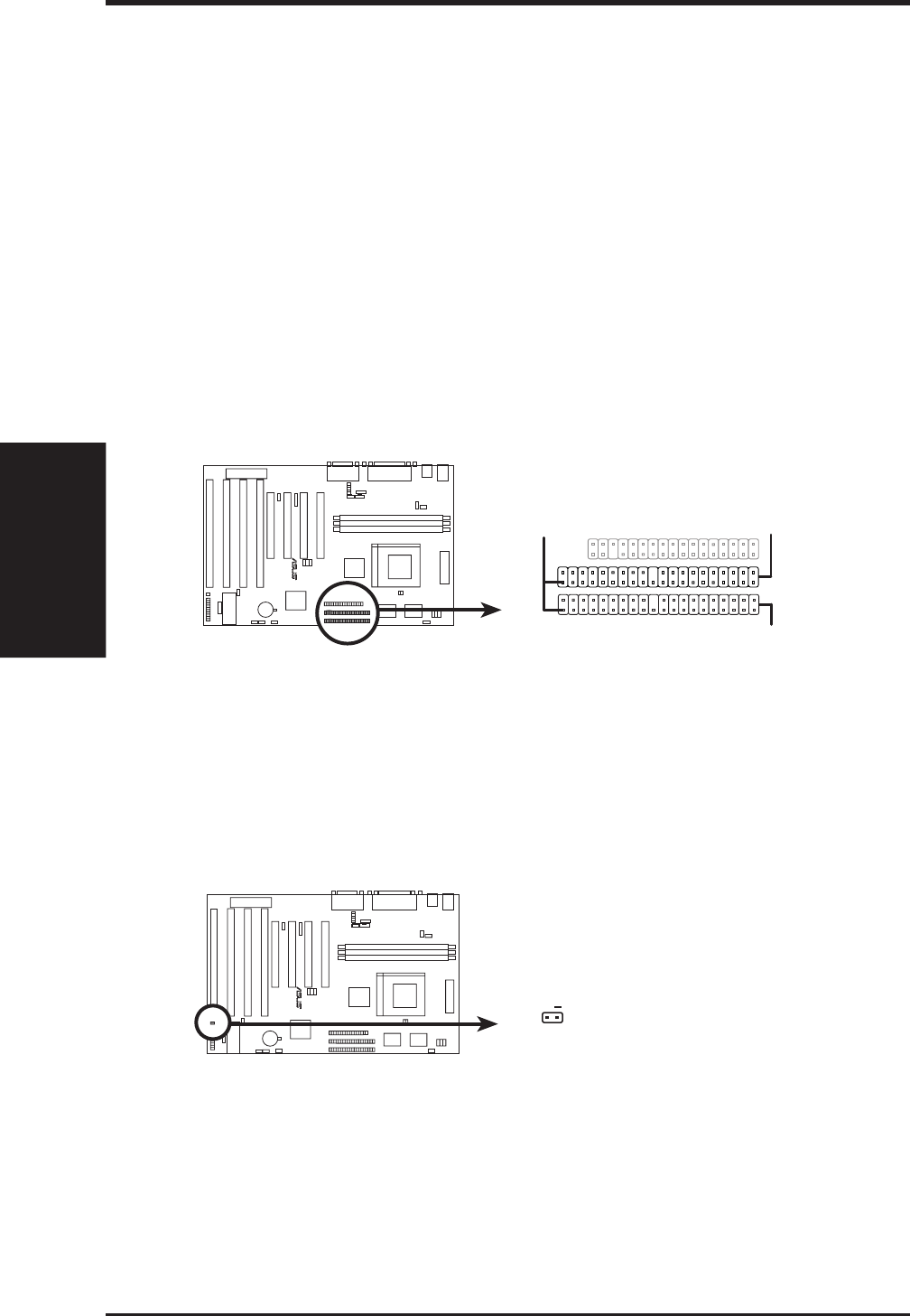

Front View
+5V
IRTX
IRRX
NC
GND
Back View
Infrared Module Connector
IRRX
+5V
IRTX
FIRRX
GND
For the infrared feature to be available,
you must connect the optional Infrared
(IrDA) module to the motherboard
R
14. ATX Power Supply Connector (20-pin ATXPWR)
This connector connects to a ATX power supply. The plug from the power
supply will only insert in one orientation because of the different hole sizes.
Find the proper orientation and push down firmly making sure that the pins are
aligned.
IMPORTANT: Be sure that the ATX power supply can take at least 10mAmp
load on the 5volt standby lead (5VSB). You may experience difficulty in
powering on your system without this.
ATX Power Connector
3.3V
-12.0V
GND
PS-ON
GND
GND
GND
-5.0V
5.0V
5.0V
PW-0K
12.0V
3.3V
3.3V
GND
5.0V
GND
5.0V
GND
5VSB
