UNINET IMAGING INC. • BROTHER 1240/1650 • DISASSEMBLING THE OPC CARTRIDGE
11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • sales@uninetimaging.com
© 2005 Uninet Imaging Inc. All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.
USA
+1-310-280-9620
+1-310-838-7294
Ph:
Fx:
JAPAN
+81-3-44-55-2789
+1-310-838-7294
EUROPE
+34-93-757-1335
+34-93-741-4166
BRAZIL
+55-11-4822-3033
+55-11-4822-3353
ARGENTINA
+54-11-4571-2388
+54-11-4574-3706
www.uninetimaging.com

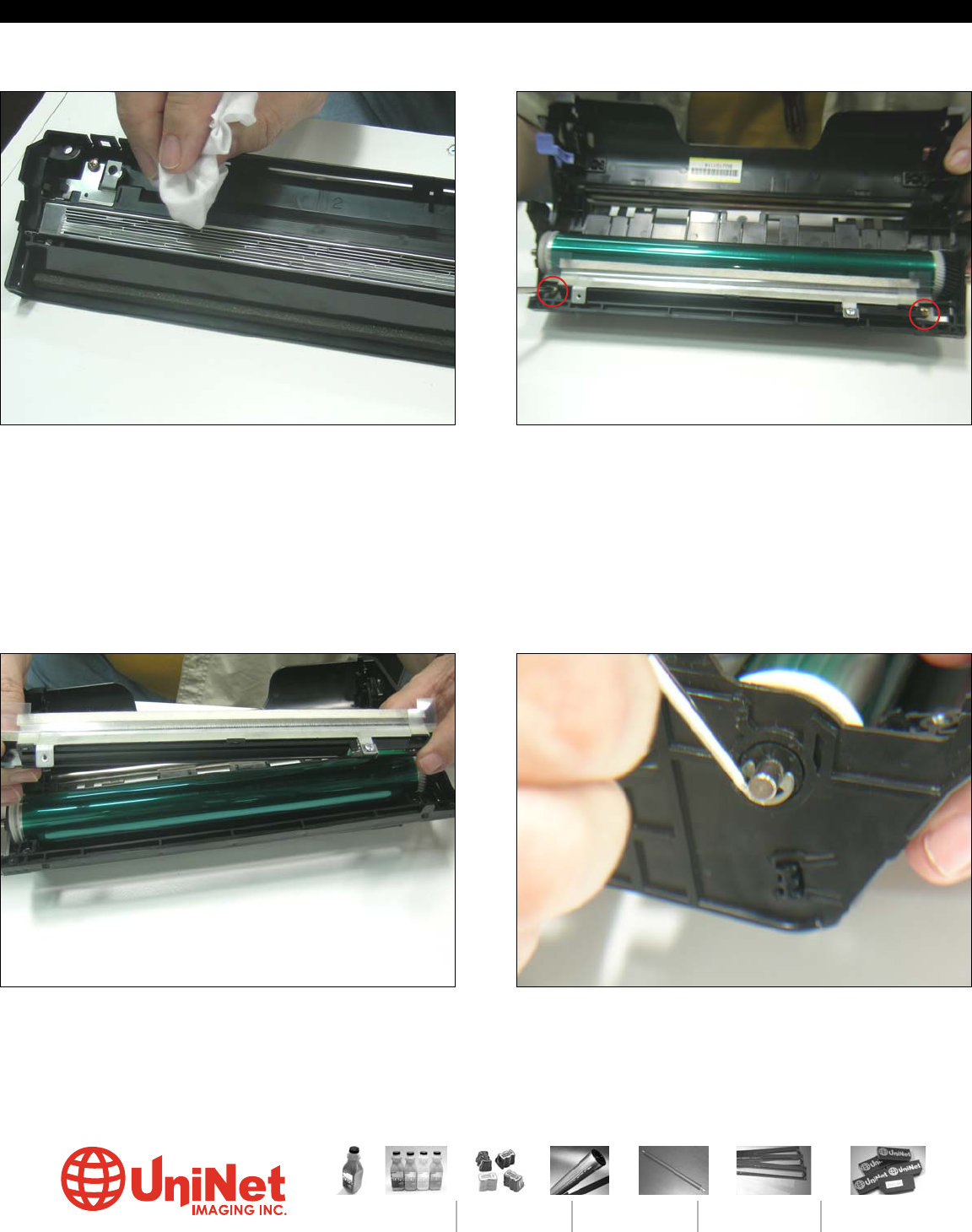

4. Finish with a dry lint-free cloth.
6. Remove and clean the assembly thorough-
ly removing all remains of old toner.
5. With a Phillips screwdriver remove the
screws holding the drum cleaning assembly.
You will notice that it is composed of a clean-
ing felt, a recovery blade and a couple of
scraper-blades.
2
1
7. Remove the shaft of the drum by releasing
the retaining washer from the left side of the
cartridge.
