UNINET IMAGING INC. • BROTHER 1240/1650 • DISASSEMBLING THE OPC CARTRIDGE
11124 Washington Blvd., Culver City, California U.S.A. 90232 Ph: 310 280-9620 • Fx: 310 838-7294 • sales@uninetimaging.com
© 2005 Uninet Imaging Inc. All Trademark names are property of their respective owners. Product brand names mentioned are intended to show compatibility only. Uninet Imaging does not guarantee or warrant downloaded information.
USA
+1-310-280-9620
+1-310-838-7294
Ph:
Fx:
JAPAN
+81-3-44-55-2789
+1-310-838-7294
EUROPE
+34-93-757-1335
+34-93-741-4166
BRAZIL
+55-11-4822-3033
+55-11-4822-3353
ARGENTINA
+54-11-4571-2388
+54-11-4574-3706
www.uninetimaging.com

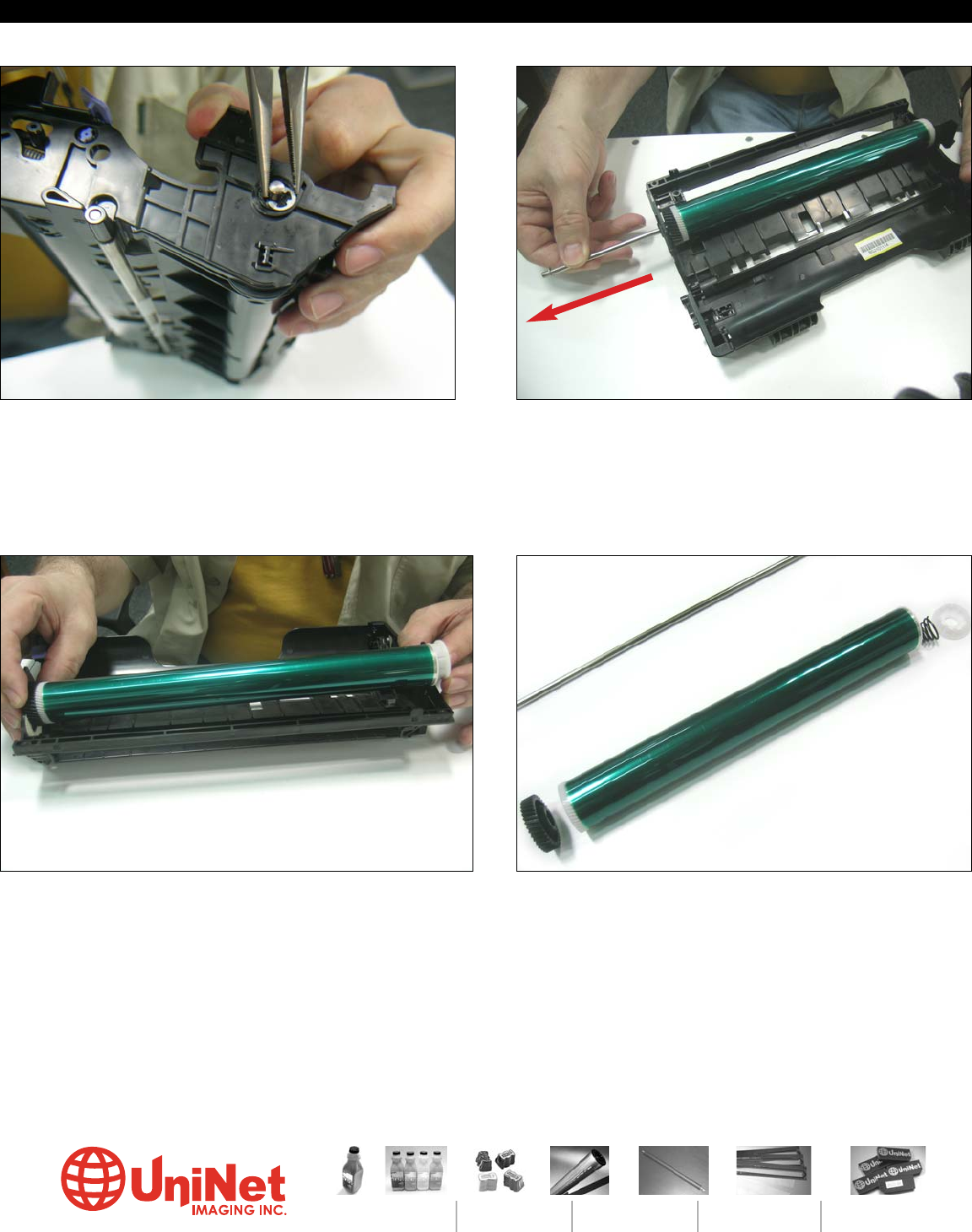

8. Pull axle out using a pair of needle-nose pli-
ers.
10. When the drum is extracted there will be a
spring loaded clutch piece at one end and a
drive gear on the other side coming loose.
11. Do not lose these three pieces which will be
needed to assemble the cartridge even if a new
drum is installed.
9. Slide the axle away from the cartridge as
shown.
