IntelliStripe 380
16
Table 2-3. Cable Connections – USB Power
P3 – 2.5 mm Power Jack Wire Color P4 – 10P10C RJ Plug
Shell Gnd Drain Wire 1 PWR GND
Center Pin +12 26AWG Wire (Black) 2 +12
Shell Gnd Braid Shield 6 PWR GND
Center Pin +12 26AWG Wire (Brown) 8 +12
Center Pin +12 26AWG Wire (Red) 10 +12
Check all connectors to ensure they are properly connected. Replace the Rear Panel Cover by
inserting the mounting clips into the guide slots and press into the attachment slots as indicated
in Figure 2-3.
After connectors are checked and the Rear Panel Cover replaced, the unit should look similar to
Figure 2-6 and 2-7.
Ejector Rod Hole
For Card Removal
Cable To Peripheral
P/N 16051415
Cable To PC
P/N 16051417
Rear Panel Cover

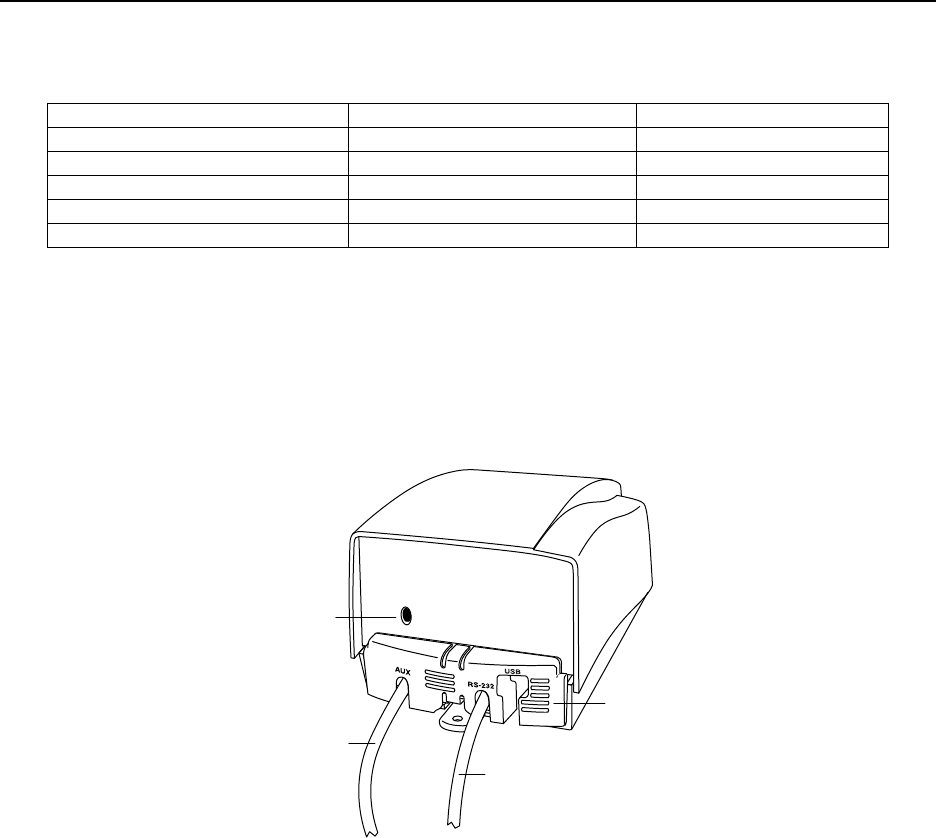

Figure 2-6. Rear Panel Cover Replaced – RS-232 Connection
