Connecting AC and RPS-SYS Power
3-18 Hardware Installation
C2RPS-SYS Redundant Power System
Ifyouareinstallinganoptionalredundantpowersystem(C2RPS‐SYS),refertothe
installationinstructionssuppliedwiththeSecureStackRPS.Theswitchisconnectedtoa
C2RPS‐PSMusingaC2RPS‐PSMCable.

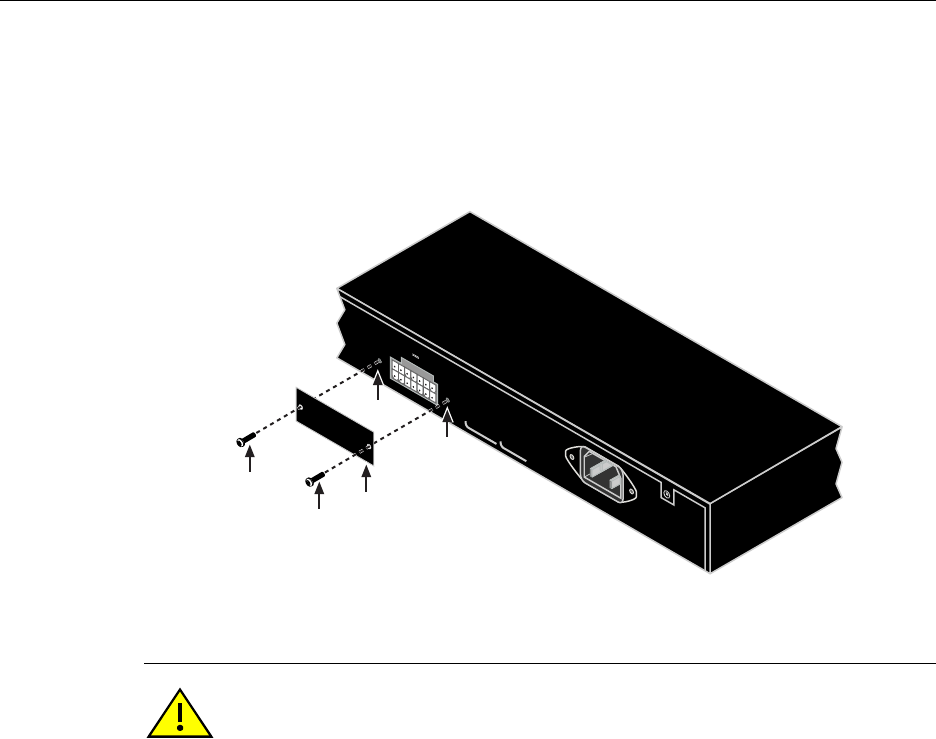

Figure 3-10 Accessing the RPS Connector
Ifyouareinstallingtheswitchasastandaloneswitch,proceedto“ConnectingtoConsole
Port
forLocalManagement”onpage 3‐20.Ifyouareinstallingswitchesinastack
configuration,applypowertoeachswitchinorder,accordingtotheprocedureyouusein
“ConfiguringSwitchesinaStack”onpage 3‐13.
1 RPS coverplate 3 Screw holes for coverplate
2 Retaining screws to fasten plate
Caution: To prevent damaging the switch, DO NOT connect a Power over
Ethernet-compliant Redundant Power System (C2RPS-POE) to the redundant power
supply connector. The switch is only compatible with the SecureStack C2RPS-SYS
redundant power supply system.
Precaución: No conecte una fuente de poder redundante (RPS) SecureStack PoE
(C2RPS-POE) al cable de corriente. De lo contrario, el dispositivo puede dañarse.
