Using LANVIEW
4-2 Troubleshooting
Using LANVIEW
TheA2H124‐24FXsupportstheEnterasys Networksbuilt‐inLANVIEWLEDvisual
diagnosticandstatusmonitoringsystem.TheLANVIEWLEDsontheA2H124‐24FXare
locatedasshowninFigure 4‐1.TheseLEDsallowyoutoquicklyobservenetworkstatus
fordiagnosingswitchandnetworkproblems.

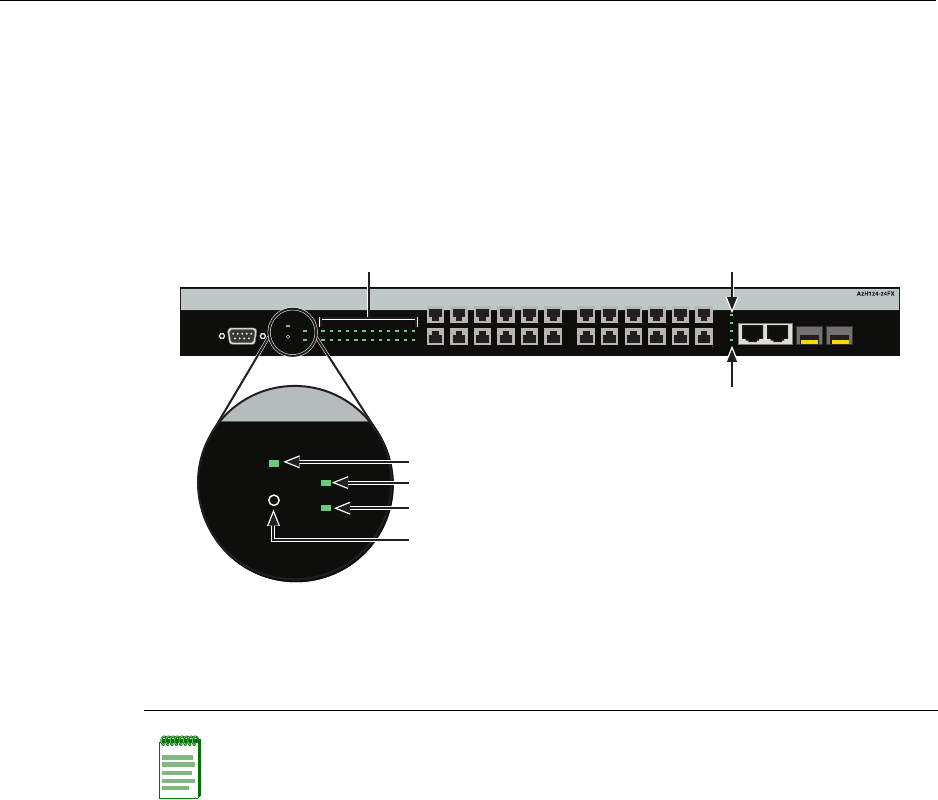

Figure 4-1 LANVIEW LEDs of A2H124-24FX
1 Recessed Password Reset Button 5 100BASE-FX Ports Link/Activity
2 Redundant Power Supply Active 6 1000 Mbps Stacking Port Link/Activity
3 Unit selected as Stack Manager 7 Mini-GBIC Link/Activity
4 CPU and Power Indicator
Note: The terms flashing, blinking, and solid used in Tab le 4-1 indicate the following:
Flashing: LED is flashing randomly.
Blinking: LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid: LED is on steady and not pulsing.
Console
CPU
RPS
MGR
1357911131517192123
24681012141618202224
25
26
27
28
25/Up 26/Down
Stack
27
28
2 8 10 1246
179113 5 13 19 21 2315 17
14 20 22 2416 18
Ä Å
Á
Â
Ã
À
CPU
RPS
MGR
Æ
