❏ Release lever
Pressing this lever switches between the paper clamped status (preparing to print) and
paper released status (ready for insertion of paper).
• Release lever raised: paper clamped status (ready to print)
• Release lever lowered: paper released status (not ready to print)
Note:
When supplying paper from the auto sheet feeder (ASF), it is not necessary to operate the release lever. It
is only used when feeding paper by hand.
See "Control panel" on page 2-3 for how to use the control panel.
For details of how to use the products, see "How to Set, Replace, and Print on the Paper" on page 3-1.

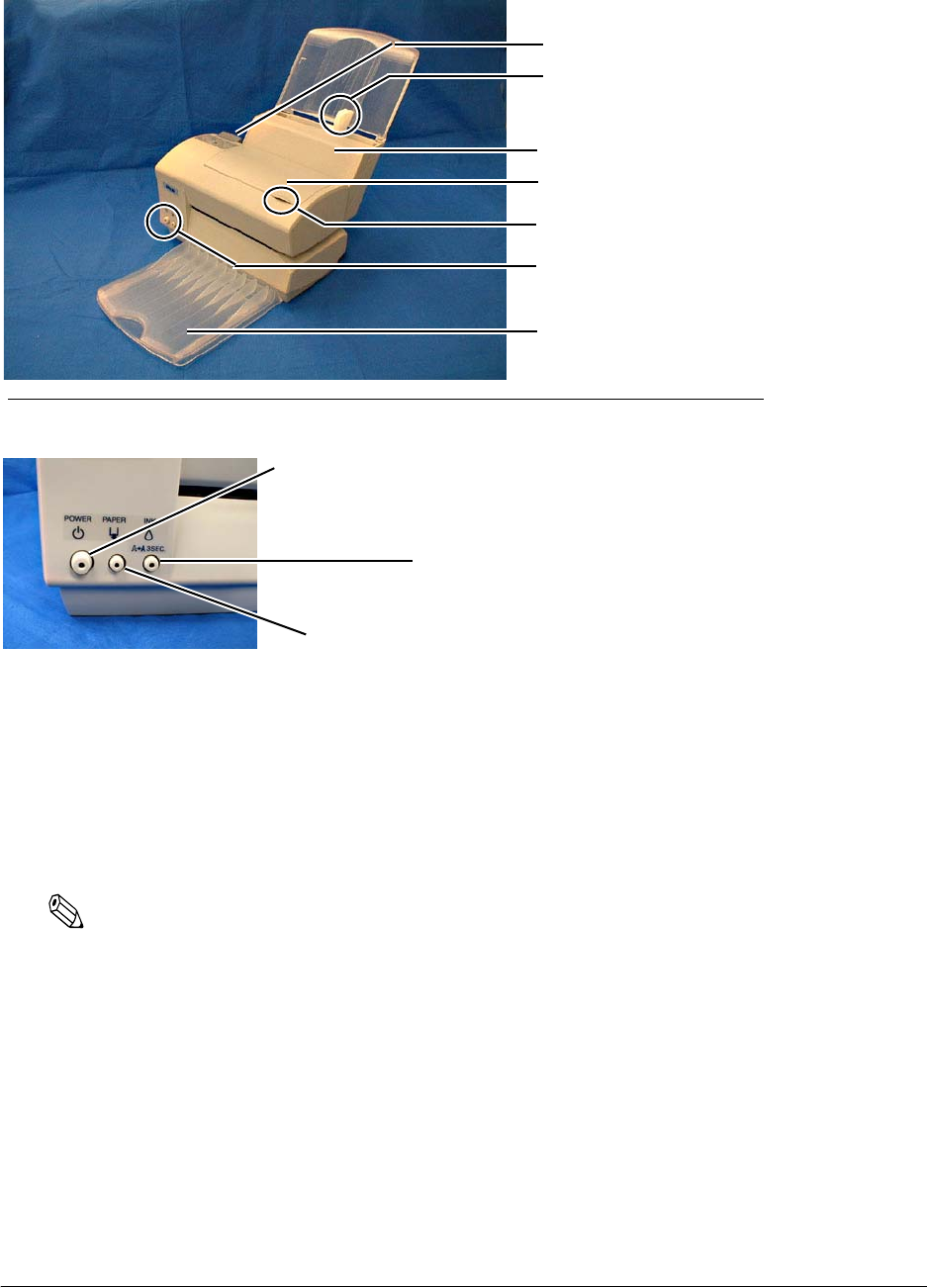

paper tray
auto sheet feeder (ASF)
tab
control panel
printer cover
edge guide
release lever
ASF (auto sheet feeder) specification
POWER LED &
POWER switch
PAPER switch
PAPER LED &
CLEANING switch
INK LED &
Enlarged view of the control panel
