Installing the Switch 7
– For a Compaq/Rittal rack, assemble each of the two brackets with (2)
spacers, (2) M5 flat washers, and (1) M5 Torx head screw with
captive lock washers as shown in Figure 3.
Note For the Compaq/Rittal rack, the alignment pins will be resting on
the top surfaces of the spacers.

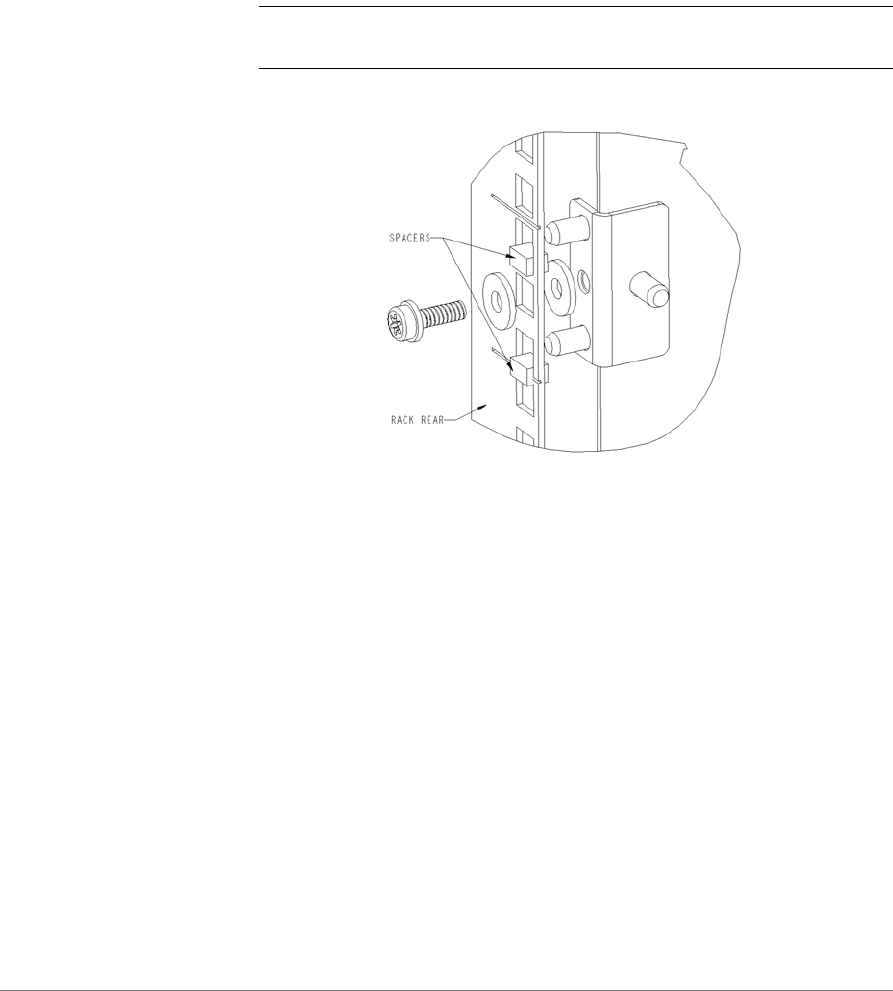

Figure 3. Installing the Rear Rail-Tray Brackets (Compaq/Rittal Rack)
4. Install the Tinnerman clips or nuts by completing one of the following
steps:
– For an HP rack, install (2) M5 U-type Tinnerman clips for each of
the front columns of the rack in the top and bottom positions of the
three-hole EIA pattern as shown in Figure 4.
