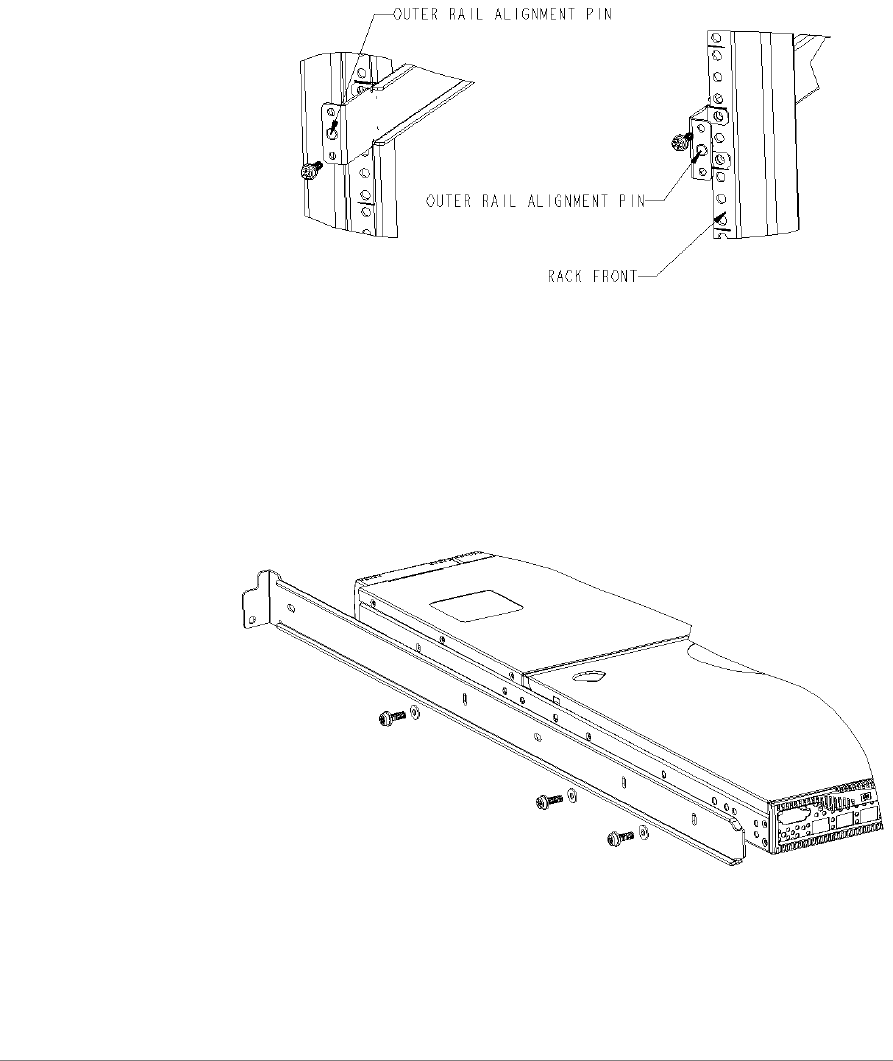

Figure 7. Assembling the Outer Rails (HP Rack)
– For a Compaq/Rittal rack, install one #10-32 x 5/8 Phillips
pan-head screw in the upper hole location of the right rail. Then,
install one #10-32 x 5/8 Phillips pan-head screw in the lower
location of the left rail.
6. Assemble the two inner rails (one on each side) to the switch using (6)
#8-32 x 5/16 Phillips pan-head screws, and #8 flat washer as shown in
Figure 8.
Figure 8. Assembling the Inner Rails
