B–4 Maintenance and Service Guide
Connector Pin Assignments

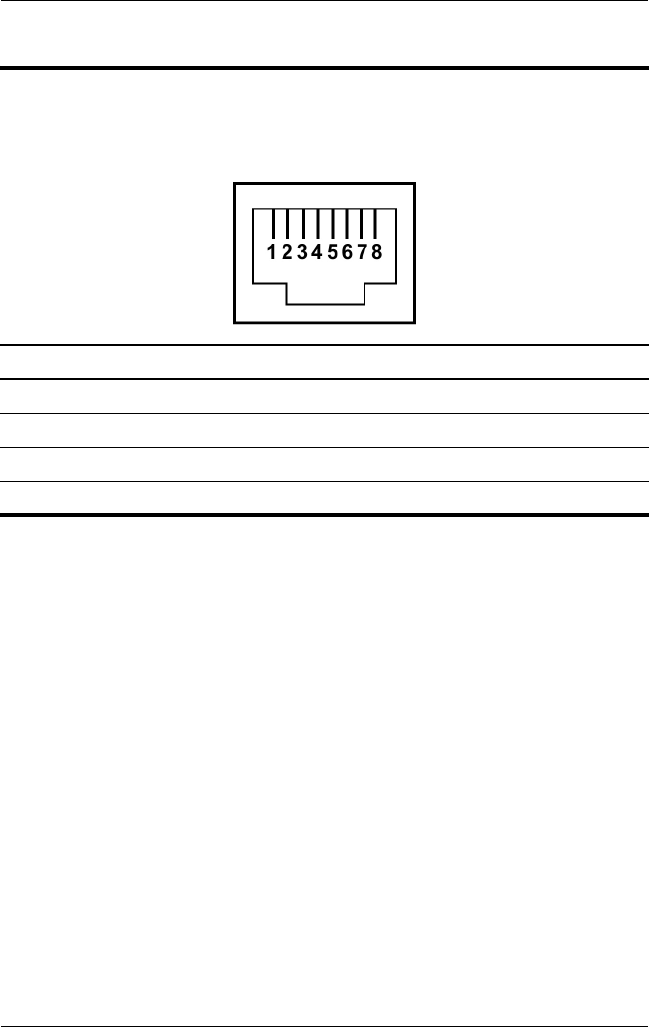

Table B-4
RJ-45 (Network) Jack
Pin Signal Pin Signal
1 Transmit + 5 Unused
2 Transmit – 6 Receive –
3 Receive + 7 Unused
4 Unused 8 Unused
