User manual
POLARIS Panel PC 19.1'' and Panel PC 15''
Version 2.00 Page 29 of 46
E_BMS790_POLARIS_PanelPC_19+15_Rev1.doc • User manual for POLARIS Panel PC 19.1" and 15" • Revision 1 / Status: January, 3
rd
, 2006 • Technical data subject to change

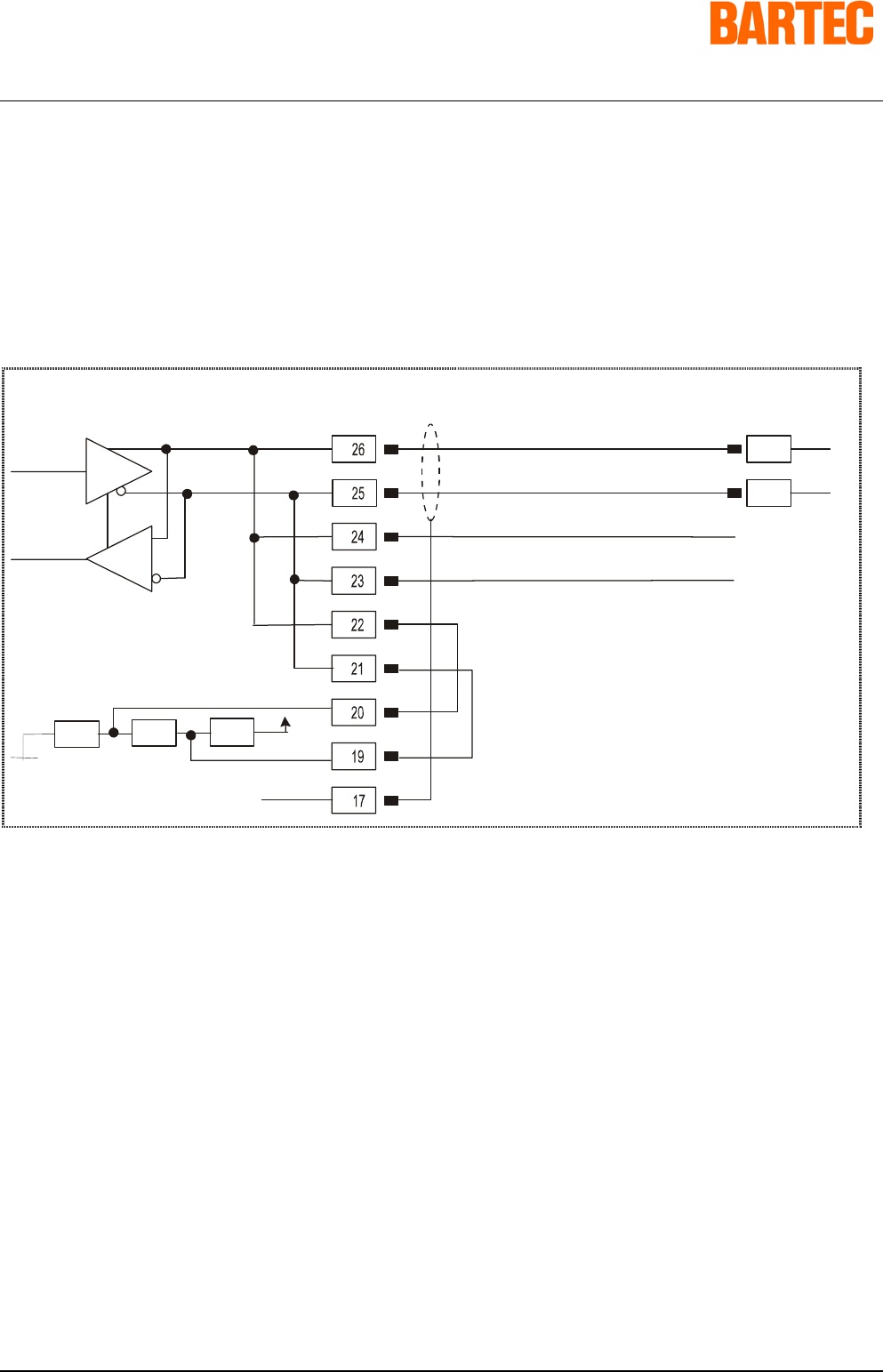

6.3 PROFIBUS-DP interface
Connection of a controller via a PROFIBUS-DP interface of the POLARIS Panel PC.
The PROFIBUS-DP interface may only be applied in combination with the visualisation software BMS Graf pro.
PROFIBUS-DP module
Terminal compartment of the POLARIS Panel PC Controller
PE
Data In
Data Out
A
A
B
B
See the interface description from the controller manufacturer for the relevant pin assignment of the controller.
Pins 26-24-22, 25-23-21 are already connected inside.
to other PROFIBUS participants
if final device is in bus
(termination)
