Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly
Removing the Hard Disk(s) in the Secondary HDD Bay
1. Turn off the computer, and turn it over and remove the battery.
2. The secondary hard disk bay is located under the battery compartment.
3. Remove screw - .
4. Slide the hard disk assembly in the direction of the arrow .
5. Lift the hard disk assembly out of the compartment.
6. Remove the screws - to release the hard disk from the case .
7. Reverse the process to install any new hard disk(s).
6. Hard Disk Assembly
11. Hard Disk Case
•8 Screws

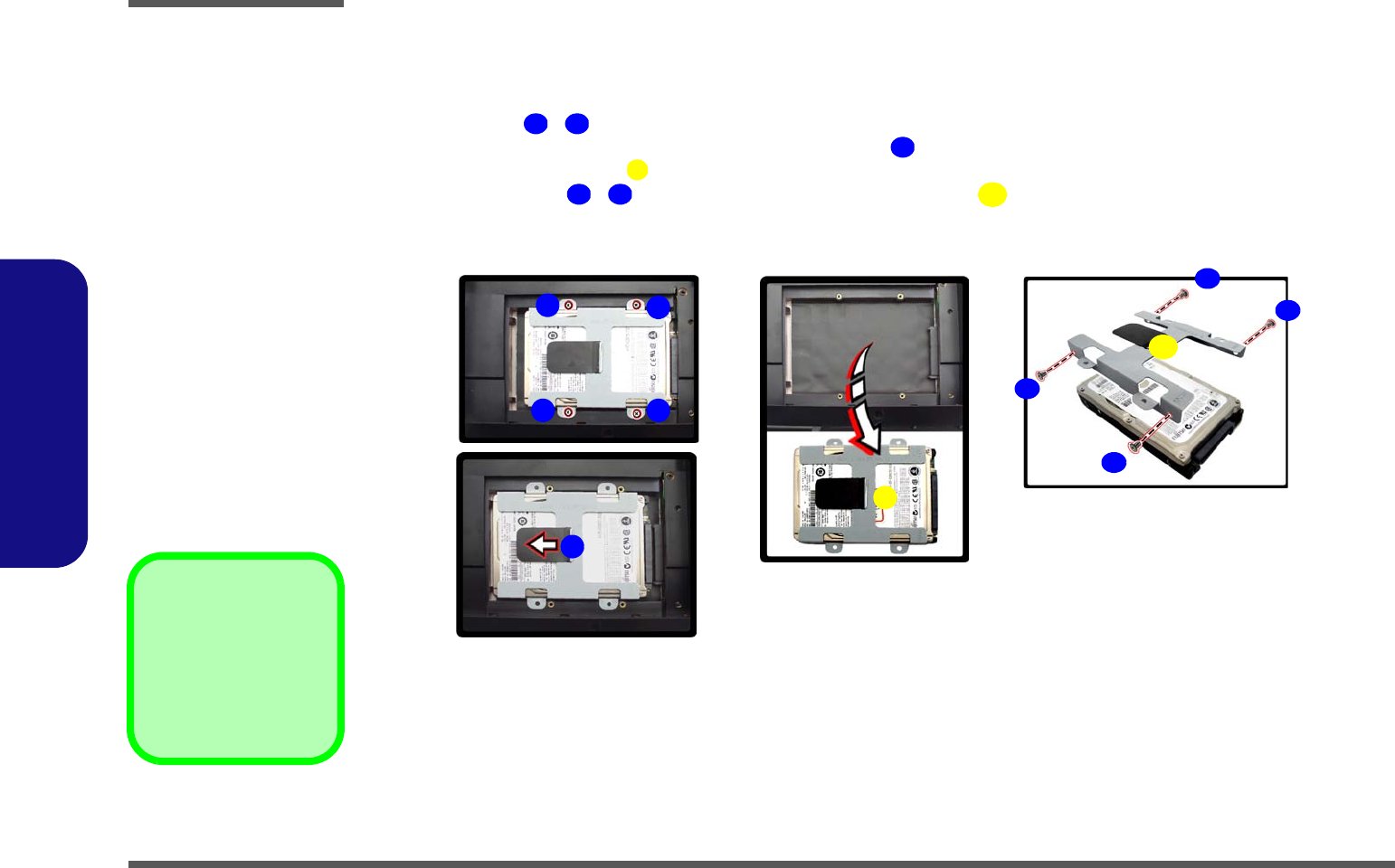

Figure 4
Secondary HDD
Assembly Removal
a. Remove the screws and
slide the hard disk as-
sembly in the direction of
the arrow.
b. Lift the hard disk assem-
bly out off the computer.
c. Remove the screws to re-
lease the hard disk from
the case.
1 4
5
6
7 10
11
2
1
6
a. c.
8
7
10
34
9
11
5
b.
