2 - 12 Removing the VGA Card
2.Disassembly
7. Remove screws - from the heatsink in the order indicated on the label (two video cards are pictured
here).
8. Grip the handle
and carefully remove the heatsink .
9. Remove screws - from the video card.
10. Carefully remove the VGA card module from the mainboard.
11. Reverse the process to install a new VGA card modules.
13 16
17
18
19 21
22
f.
d.
18
22
16
15 13
1416
15 13
14
1717
19
20
21
19
20
21
18
22
e.
18. VGA Card Heatsink
22. VGA Card Module
•16 Screws

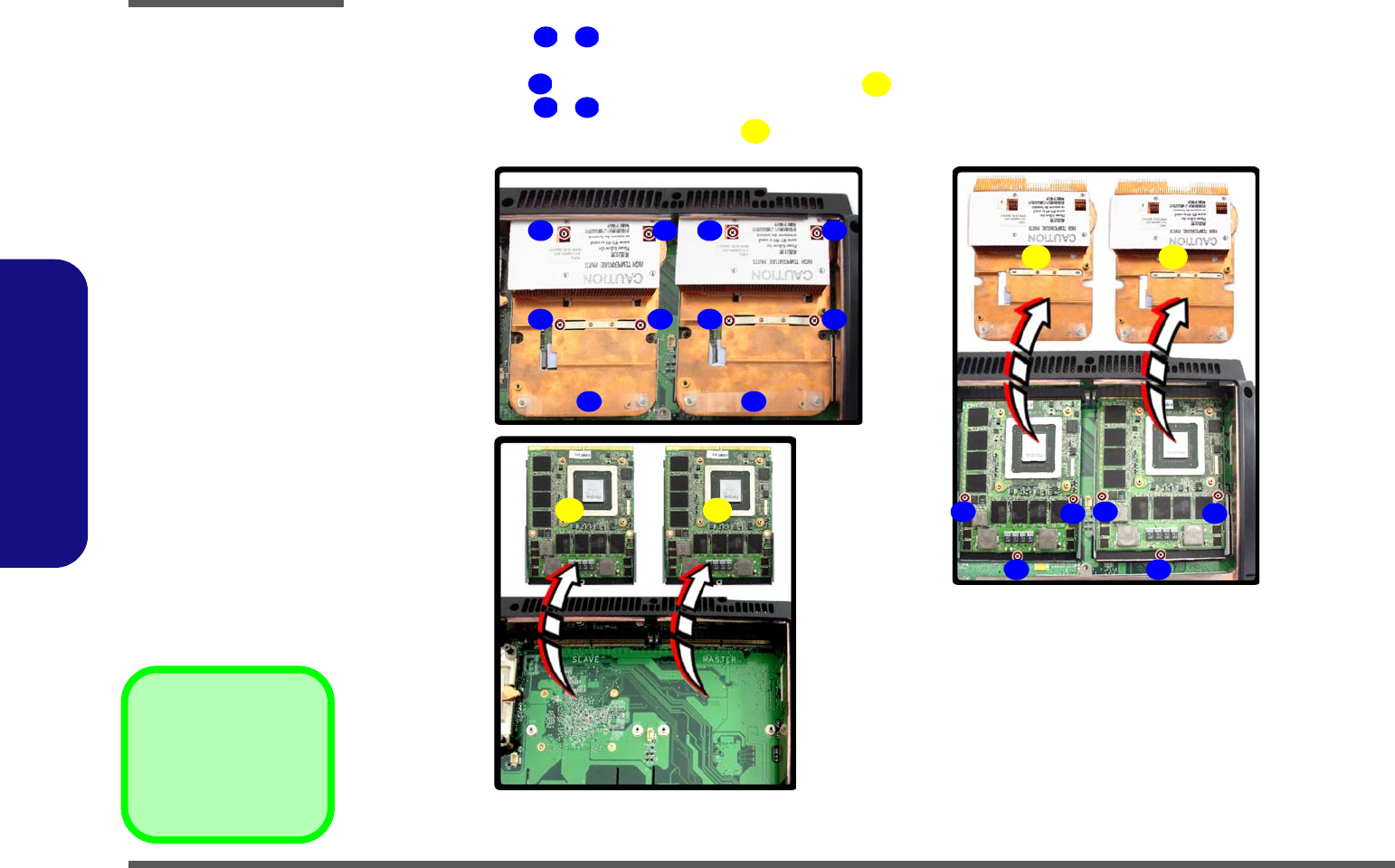

Figure 8
VGA Card Removal
(cont’d.)
d. Remove the screws.
e. Remove the VGA heat-
sink.
f. Remove the VGA mod-
ule.
