2 Making Connections
2.1 LAN Connection
This copier can transmit with the TCP/IP protocol on a LAN. Therefore, the
LAN cable must be connected.
Connect to the LAN by using a LAN cable (cable for Fast Ethernet
100BASE-TX).
Connecting the LAN cable
Insert one plug on the LAN cable into the connector (marked LAN) at the
back of the machine, and then insert the other plug into the hub.
✎
Tip
The connector is at the back of the machine.
The LAN cable should be a cable for Fast Ethernet 100BASE-TX
(Category 5).
The LAN cable is not included as an accessory.

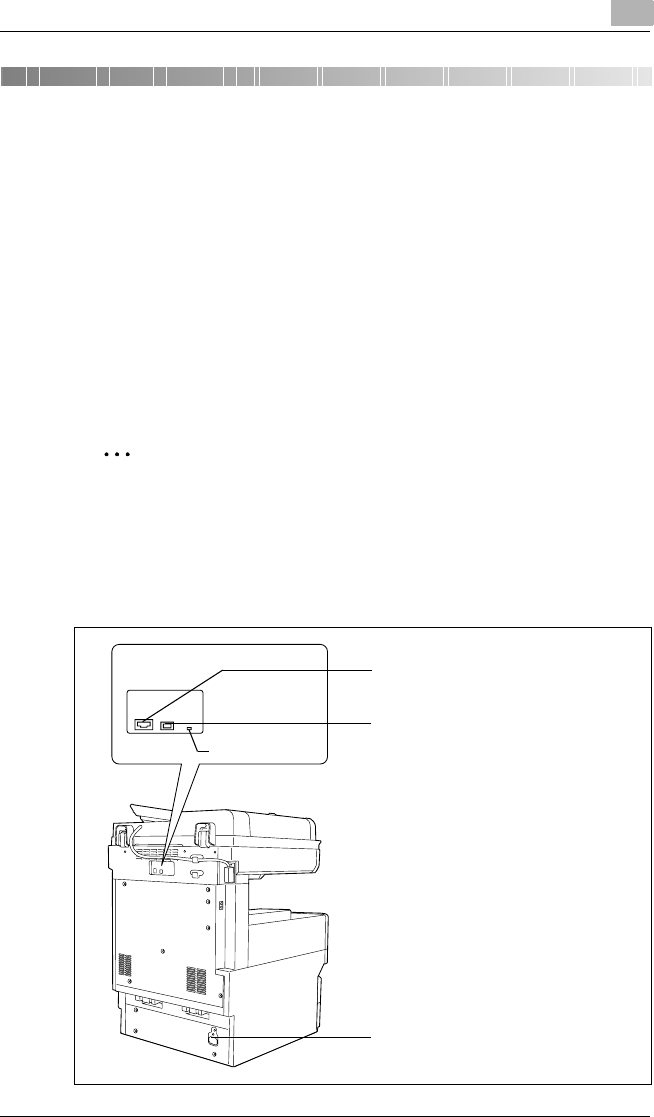

LAN
USB
LED indicator
Power cord connector
Connector for LAN cable
USB printer connector (optional)
For more details, refer to the manual
for the Pi3505e printer controller.
