Page 26 - 34007117EN/AB
F
E
4. Maintenance
Installation of the new battery module
Carry out the above operation in reverse order.
◗ Caution: risk of electric arc when connecting the battery.
◗ To maintain an identical level of performance and safety, use a battery module identical to that previously
mounted in the UPS.
◗ Press the two parts of the battery connector tightly together to ensure proper connection.

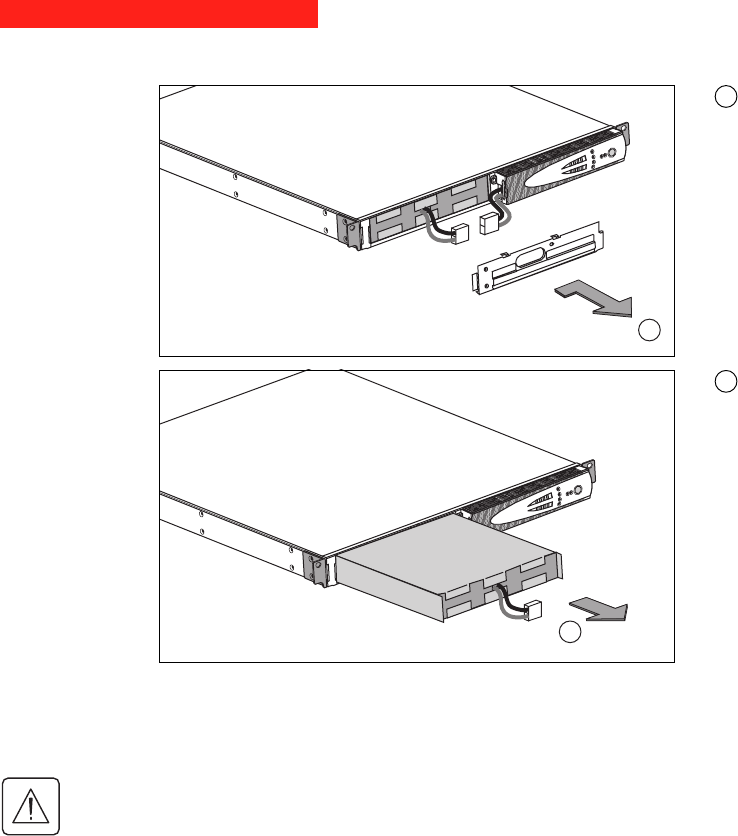

E - Remove the cover.
F - Remove the battery module by pulling
on the plastic tab and proceed with
replacement.
