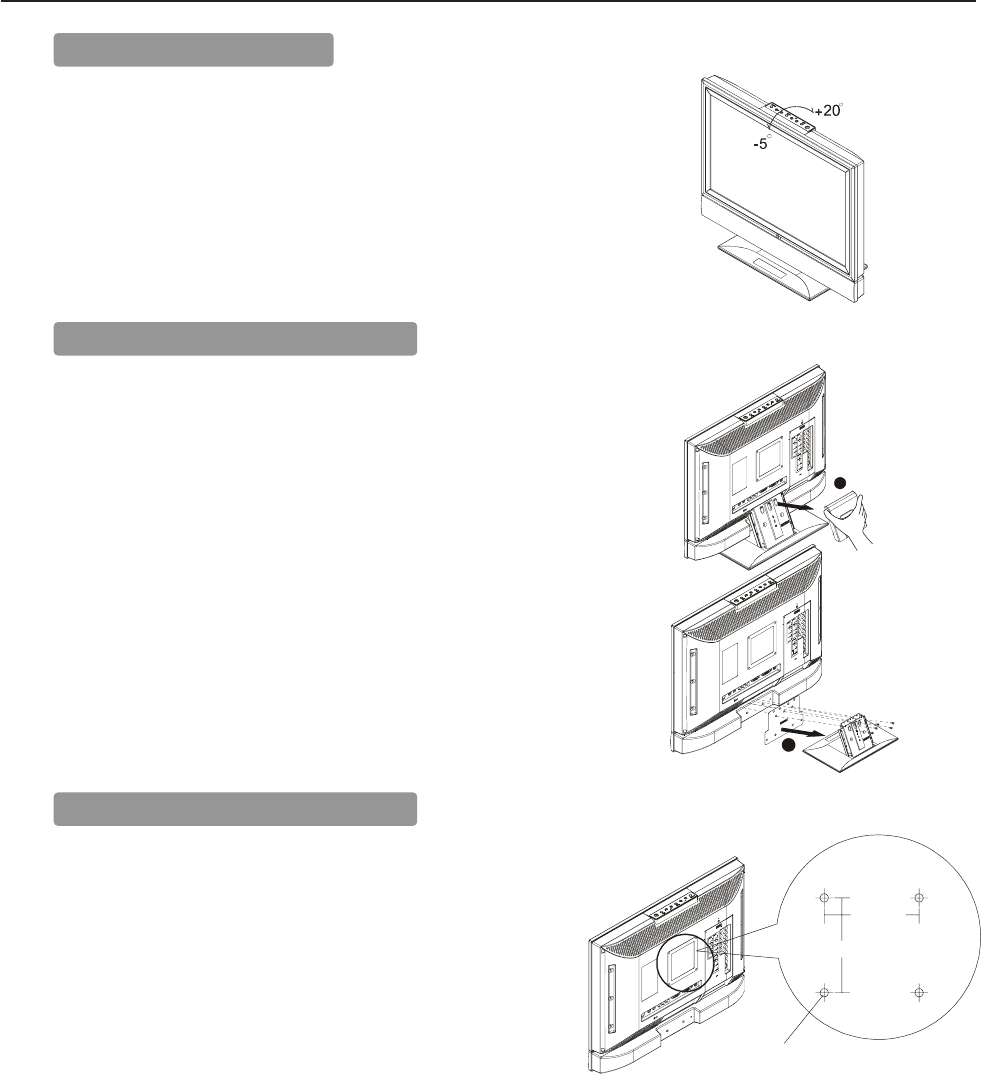

Viewing Angle Adjustment
This product is designed to allow users to have a comfortable viewing angle.
The viewing angle can be adjusted from -5°to +20°.
Warning: Do not force the LCD Monitor over its maximum viewing angle as stated
above. Attempting this will result in damaging the Monitor and Monitor stand.
Detaching Main Body From Its Stand
Important: Place the monitor on a clean, flat surface that will not scratch the front
or glass surfaces of the display unit.
1. Remove the rear cover from rear stand assembly
2. Remove the 5 screws from the hinge bracket
3. Remove the stand from main body
1
2
Interface for Arm Applications
Before installing to mounting device, please refer to Fig.1-5.
The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded nuts,
as well as four 5 mm access holes in the plastic covering as illustrated in Figure 1-
8. These specifications meet the VESA Flat Panel Monitor Physical Mounting
Interface Standard (paragraphs 2.1 and 2.1.3, version 1, dated 13 November
1997).
Note 1: Please using Ø 4mm x 8mm (L) screw for this application.
Note 2: The LCD monitor should only be used with an approved arm (e.g. GS
mark). To meet the safety requirements, the monitor must be mounted to an arm
which guaranties the necessary stability under consideration of the weight of the
monitor.
100mm
100mm
100mm x 100mm
Screw Mounting Options
4mm ,0.7pitch threaded holes x4
