English-7
AUDIO IN 1,2,3
To input audio signal from external equipment such as a com-
puter, VCR or DVD player.
AUDIO OUT
To output the audio signal from the AUDIO IN 3 jack.
VIDEO INPUT CONNECTOR
VIDEO IN connector (BNC and RCA): To input a composite
video signal. BNC and RCA are not available at the same time.
(Use only one input).
VIDEO OUT connector (BNC): To output the composite video
signal from the VIDEO IN connector.
S-VIDEO IN connector (DIN 4 pin): To input the S-video (Y/C
separate signal).
EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232
IN connector: Use when operating the LCD monitor from the
RGB equipment like a computer.
EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2 or 3 jack.
AC IN connector
Connects with the supplied power cord.
RGB 1 IN (DVI-D)
To input digital RGB signals from a computer having a digital RGB
output.
* This connector does not support analog input.
RGB 2 IN (mini D-Sub 15 pin)
To input a analog RGB signals from a personal computer or other
RGB equipment.
RGB 3 DVD/HD [R/Cr/Pr, G/Y, B/Cb/Pb, H, V] (BNC)
IN connector:
To input the analog RGB signals or signals from
other RGB equipment. Also for connecting equipment such as a
DVD player or HDTV laser disc player. A Sync-on-Green signal
can be connected to the G/Y connector.
RGB OUT connector (BNC)
To output the signal from the RGB 2 or RGB 3 DVD/HD IN
connector.

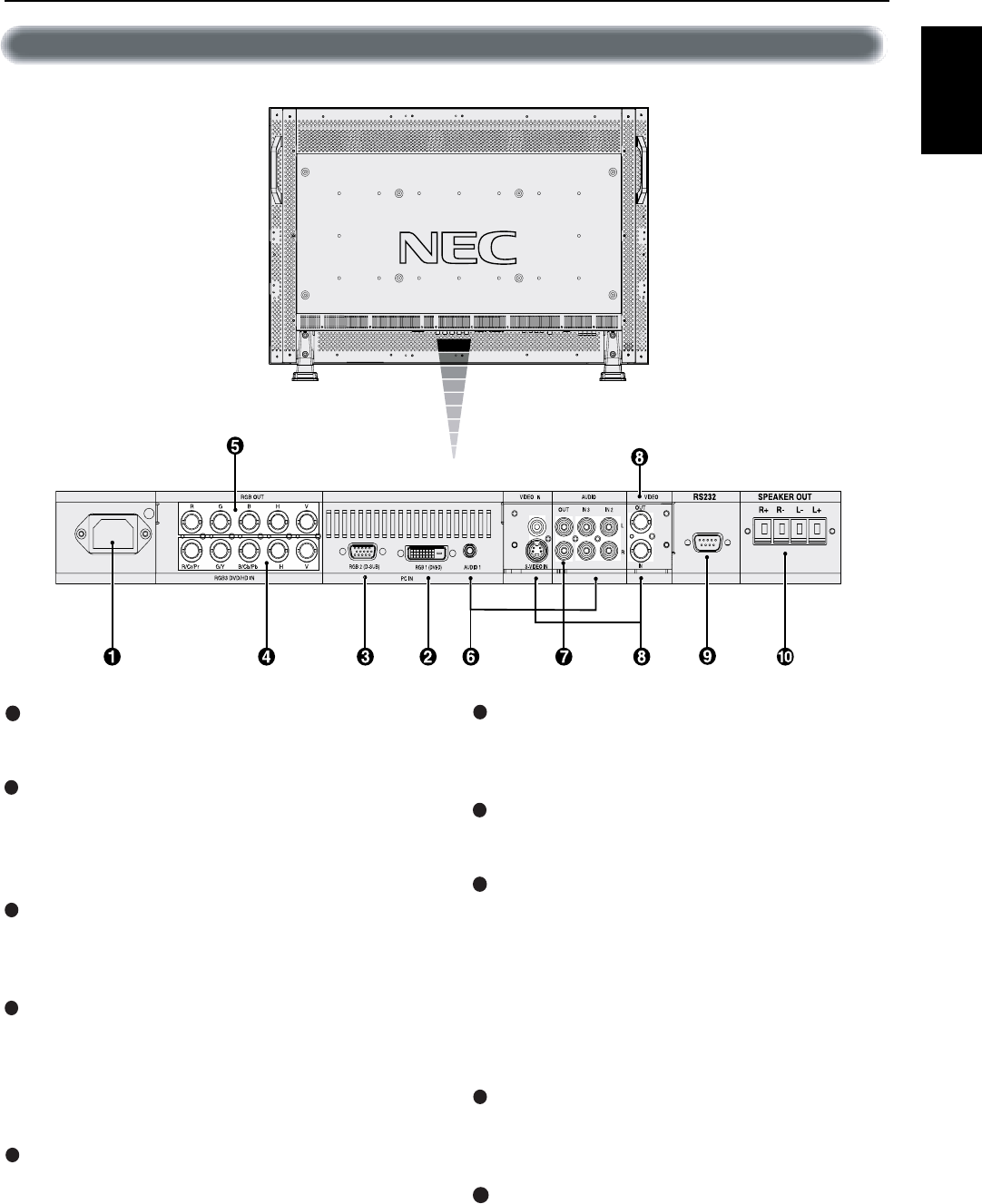

Terminal Panel
Parts Name and Functions –continued
1
2
3
4
5
6
7
8
9
10
