Reference Manual for the Integrated ADSL Modem and Wireless Router with Voice, Model
Protecting Your Network 5-11
v1.0, September 2006
• WAN Users—These settings determine which packets are covered by the rule, based on their
destination WAN IP address. Select the desired option:
– Any — all IP addresses are covered by this rule.
– Address range —if this option is selected, you must enter the Start and Finish fields.
– Single address — enter the required address in the Start field.
• Log—You can select whether the traffic will be logged. The choices are:
– Never — no log entries will be made for this service.
– Always — any traffic for this service type will be logged.
– Match — traffic of this type that matches the parameters and action will be logged.
– Not match — traffic of this type that does not match the parameters and action will be
logged.
Order of Precedence for Rules

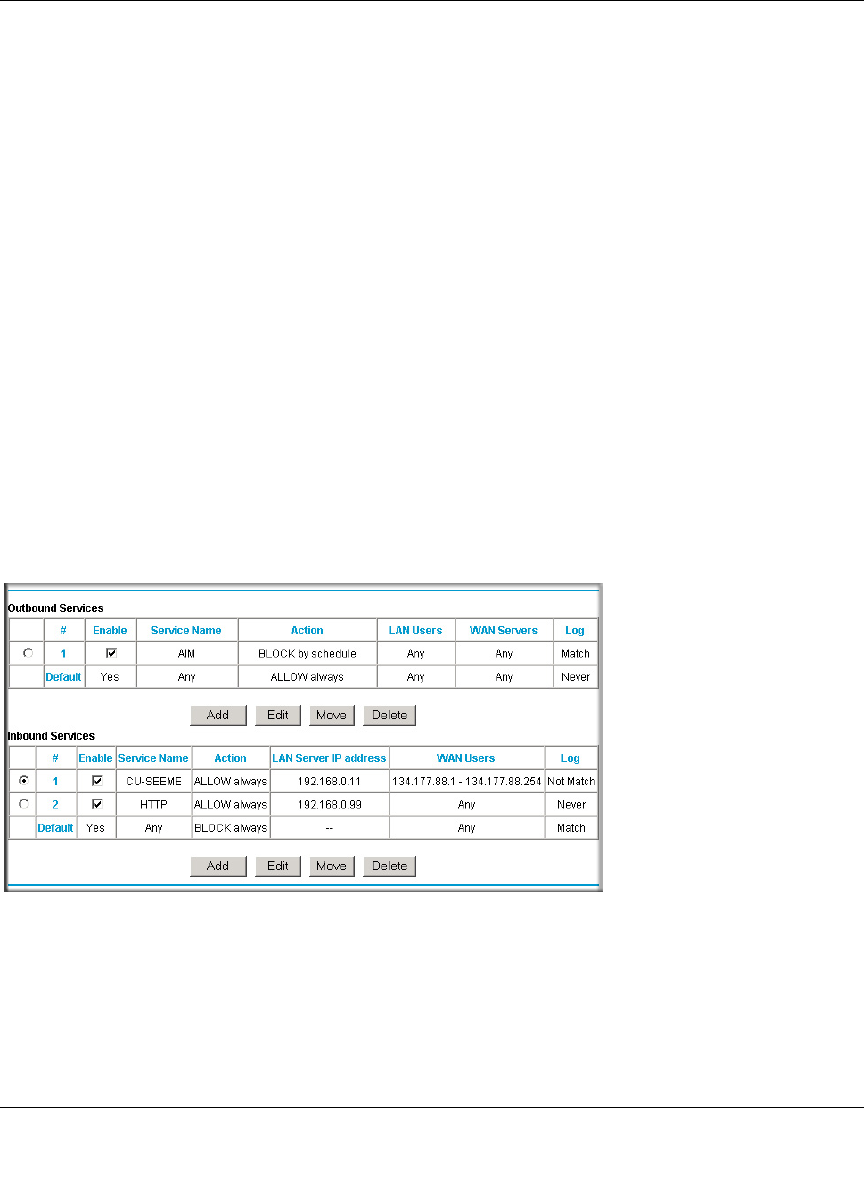

As you define new rules, they are added to the tables in the Rules menu, as shown:
Figure 5-8
