2. Names and Functions of Parts
2-1

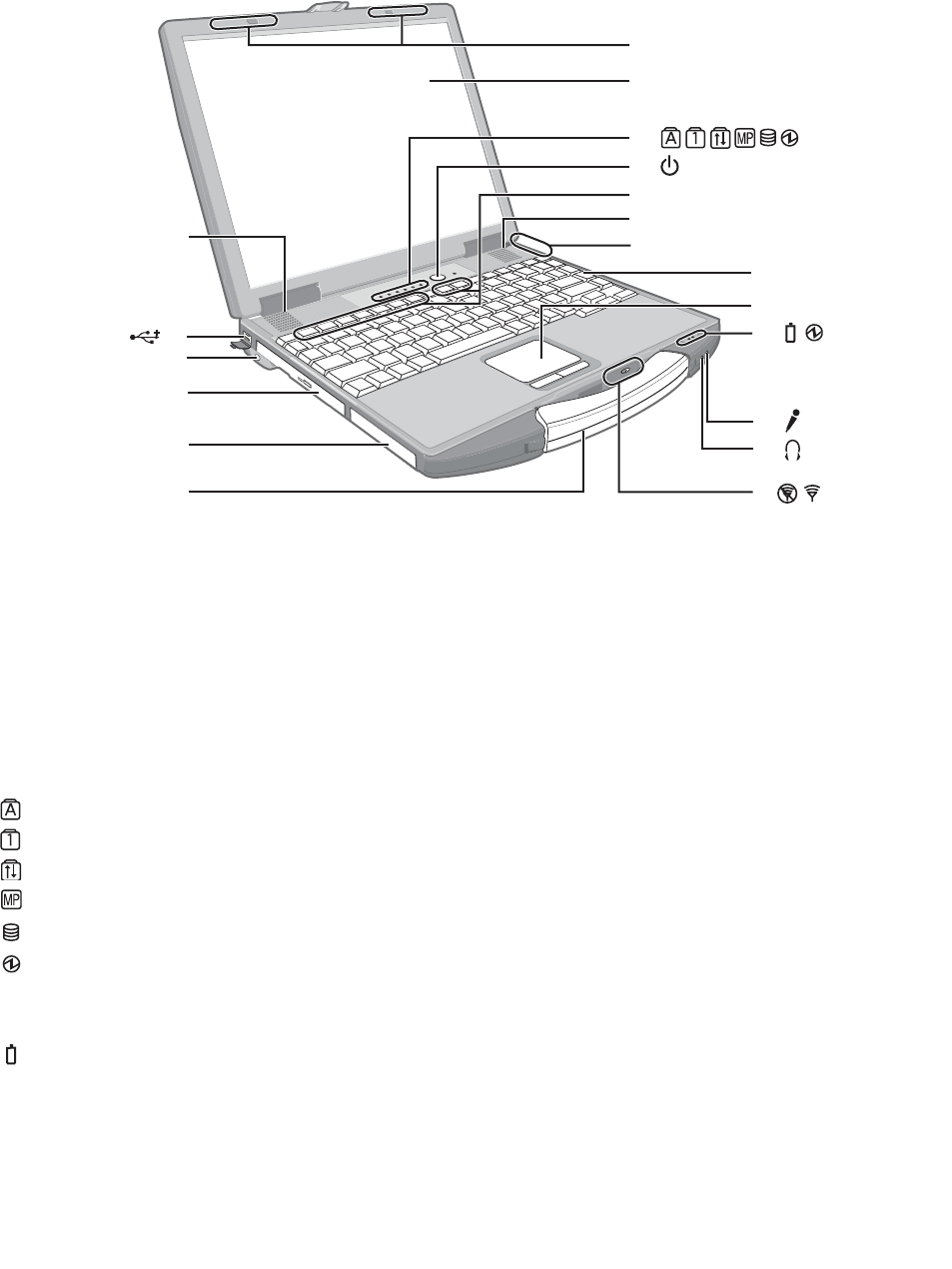

A :Speaker
B :USB port
C :Stylus holder
D :Multimedia pocket
E :Hard disk drive
F : Carrying handle
G :Wireless LAN antenna
<Only for model with wireless LAN>
H :LCD
<Only for model with touchscreen>
I : LED indicator
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Multimedia pocket device status
: Hard disk drive status
: Power status
(Off: Power off/Hibernation, Green: Power on, Blink-
ing green: Standby, Blinking green rapidly: Cannot
power on or resume due to low temperature.)
: Battery status
J : Power switch
K :Function key
L : Bluetooth antenna
<Only for model with Bluetooth>
M :Keyboard
N :Touch pad
O :Microphone jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
When recording in stereo using a stereo microphone:
Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a
check mark for [No Filtering] in [Microphone
Enhancements].
When using a monaural microphone with a 2-termi-
nal plug:
Click [start] - [All Programs] - [SoundMAX] - [Control
Panel] and select [Microphone], and then add a
check mark for [Voice Recording] in [Microphone
Enhancements].
Otherwise, only audio on the left track will be
recorded.
P :Headphone jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
Q :Wireless switch
