Chapter 2 HARDWARE INSTALLATION
This section is describes the hardware features and installation of 24 ports + 1 slot Managed
Ethernet Switch. Before using WSW2401, read the user’s manual carefully.
WSW2400 has four different modules for expansion:
Ø WSW-1ST - 1port 100BaseFX Fast Ethernet Module (ST, MM, 2km)
Ø WSW-1SC - 1port 100BaseFX Fast Ethernet Module (SC, MM, 2km)
Ø WSW-2ST - 2 port 100BaseFX Fast Ethernet Module (SC, MM, 2km)
Ø WSW-2SC - 2port 100BaseFX Fast Ethernet Module (ST, MM, 2km)
2.1 Font Panel
The font panel of the WSW-2401 Managed Ethernet Switch consist LED indicators, console
port, 24 10/100BaseTX RJ45 ports and one expansion slot.

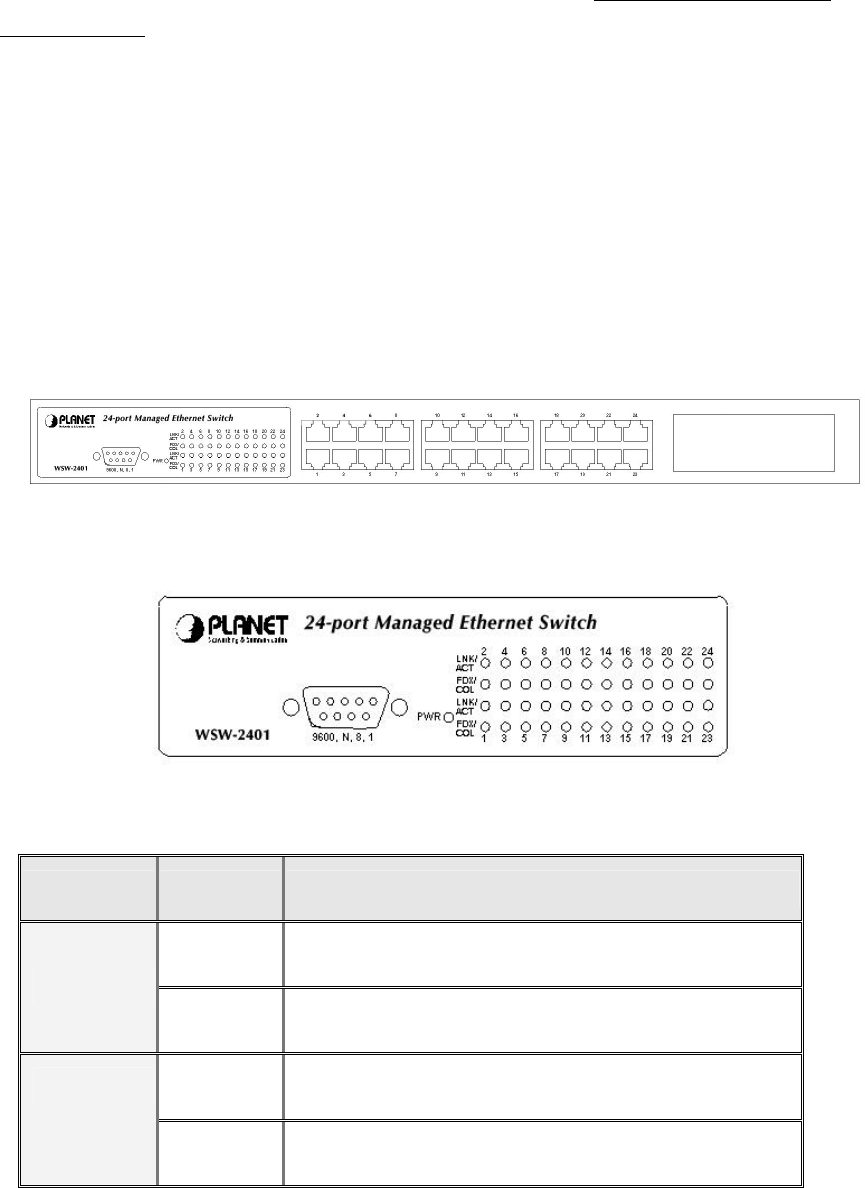

Figure 2-1 The Font Panel of WSW-2401
LED Indicators
Figure 2-2 LED Indicators
LED Status Description
Green Power On
Power
Off Power is not connected
Green The port is connecting with the device.
LNK/ACT
Blinks The port is receiving or transmitting data.
