C3X Lumis HOST
1
The C3X Lumis HOST system combines the video signal process-
ing capacity of the HOST system with the reproductive fidelity of
the projector employing DLP™ technology, connecting the two
units via optical fibre.
The HOST system, ideally placed next to the sources, is able to
acquire and process a very wide range of video signals, and to
send them, via an optical fiber connection, to the projector.
Its range of inputs (2 Composite Video inputs, 2 S-Video inputs, 4
Component or RGB inputs (3 via Phono/RCA connection & 1 Via
BNC connection), 2 graphic RGB inputs, 6 HDMI™ inputs, 1 SDI
input, 1 DVI-D input) allow it to be connected to a wide range of
analogue and digital sources: DVD players, video recorders, sat-
ellite and terrestrial receivers, computers, video game consoles,
camcorders, etc. Its image processing system permits optimum
reproduction of a wide range of input signals, from interlaced video
to high definition and digital graphics. Faithful reproduction of sig-
nals at higher resolutions (such as high definition video and graph-
ics) occurs without loss of information or reduction of image sharp-
ness thanks to the processor’s high pixel rate signal acquisition
capabilities. Different input signal resolutions can be adapted to
match the specified screen resolution without loss of image quality,
thanks to a generous selection of default aspect ratios, some of
which are user definable. All picture adjustments can be made with
the remote control interacting with a simple menu-activated On
Screen Display; alternatively, the projector can be controlled by a
domestic automation system through its serial port , the 1.1 USB
port, an RS232 serial port or the RJ45 Ethernet port.
The appliance has been subjected to exhaustive operating
tests by SIM2 to guarantee the highest quality, The projector
bulb life should thus initially be around 30-60 hours. In ad-
dition to the customary checks, the Quality Control depart-
ment also runs additional statistical tests before shipment.
In such cases, the packaging may show signs of having
been opened, and the hours of lamp operation may prove
to be higher than those normally shown when only standard
tests are performed.
FULL HD
1920
x
1080
CONTENTS
1 INTRODUCTION
2 SAFETY WARNINGS
3 CONTENTS OF THE PACKAGING
4.1 CONTROL (REMOTE CONTROL)
4.2 CONTROL (Projector keypad)
4.3 CONTROL (Host keypad)
5 CONNECTION PANEL
6 INSTALLATION
7 SWITCHING ON AND OFF
8 NETWORK FUNCTIONS
9 VIDEO CONNECTIONS
10 ON-SCREEN MENU
11 CLEANING AND MAINTENANCE
12 TROUBLESHOOTING GUIDE
13 OPTIONAL ACCESSORIES
14 TECHNICAL SPECIFICATIONS
APPENDIX
APP.1 PROJECTION DISTANCES
APP.3 DIMENSIONS HOST - C3X LUMIS HOST
APP.2 INSTALLATION INSTRUCTIONS (Vertical Shift)
1
2
4
4
5
5
6
7
9
11
11
12
20
20
21
22
1 INTRODUCTION
DLP and DMD are registered Texas Instruments trademarks.
HDMI, the HDMI logo and the expression High-Definition Multimedia
Interface are trade marks or registered marks of HDMI licensing LLC
1
6
6
6
5
O
I
6 11
1
4
2
3
7
12
9
10

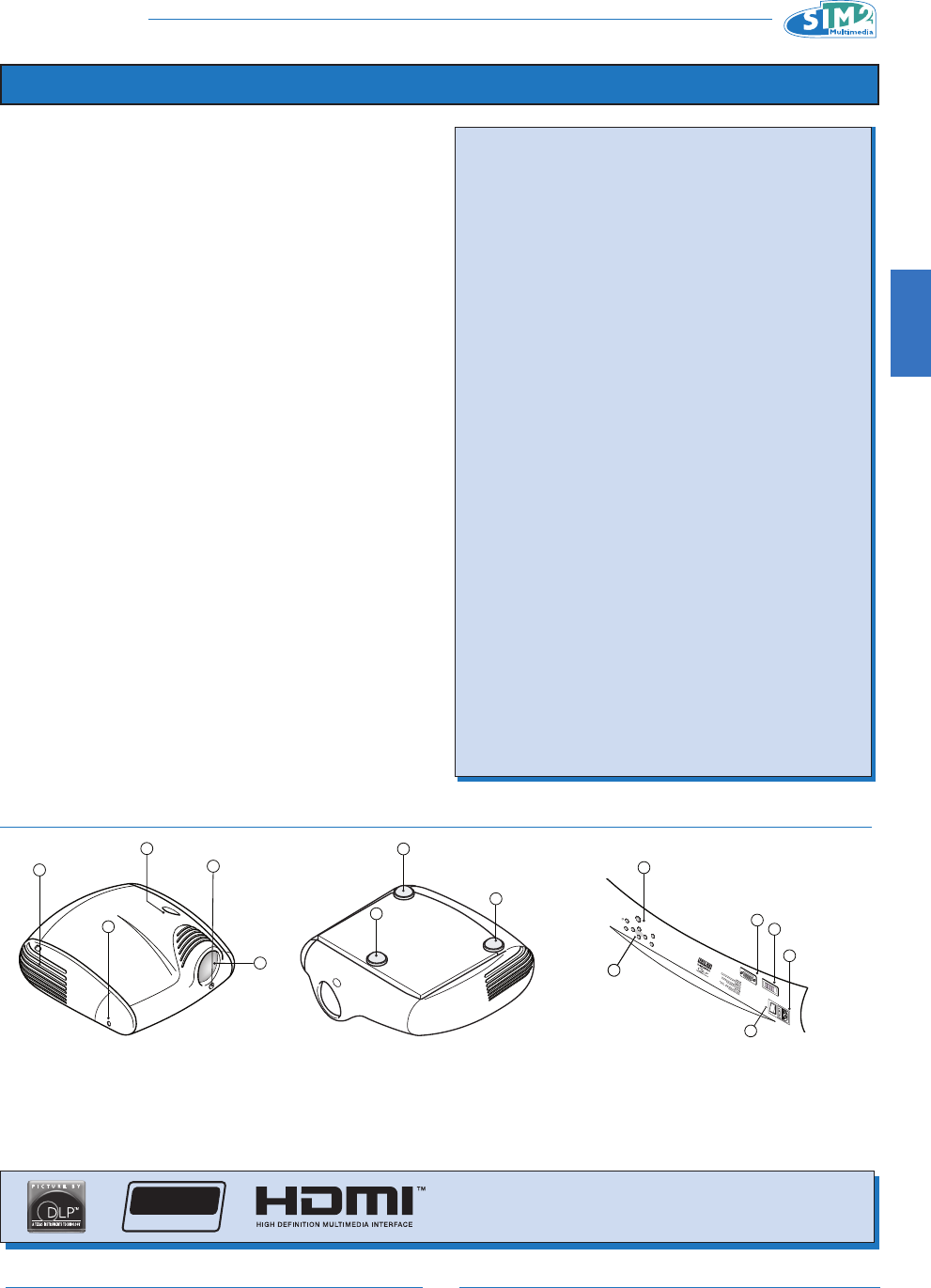

1 Projection lens
2 Lens shift knob
3 Remote control IR sensor
4 Cooling air vents
5 Bulb compartment
6 Adjustable feet
7 Fused power socket
8 Main power switch
9 Fiber link connections
10 RS232 Service Connector
11 Control keypad
12 Anamorphic lens connection
