Projecting an Image
Projecting/Adjusting an Image
Adjusting the tilt of the projector by lens shift
You can adjust the position of the projected
image by turning the screws for lens shift
(V shift screw and H shift screw).

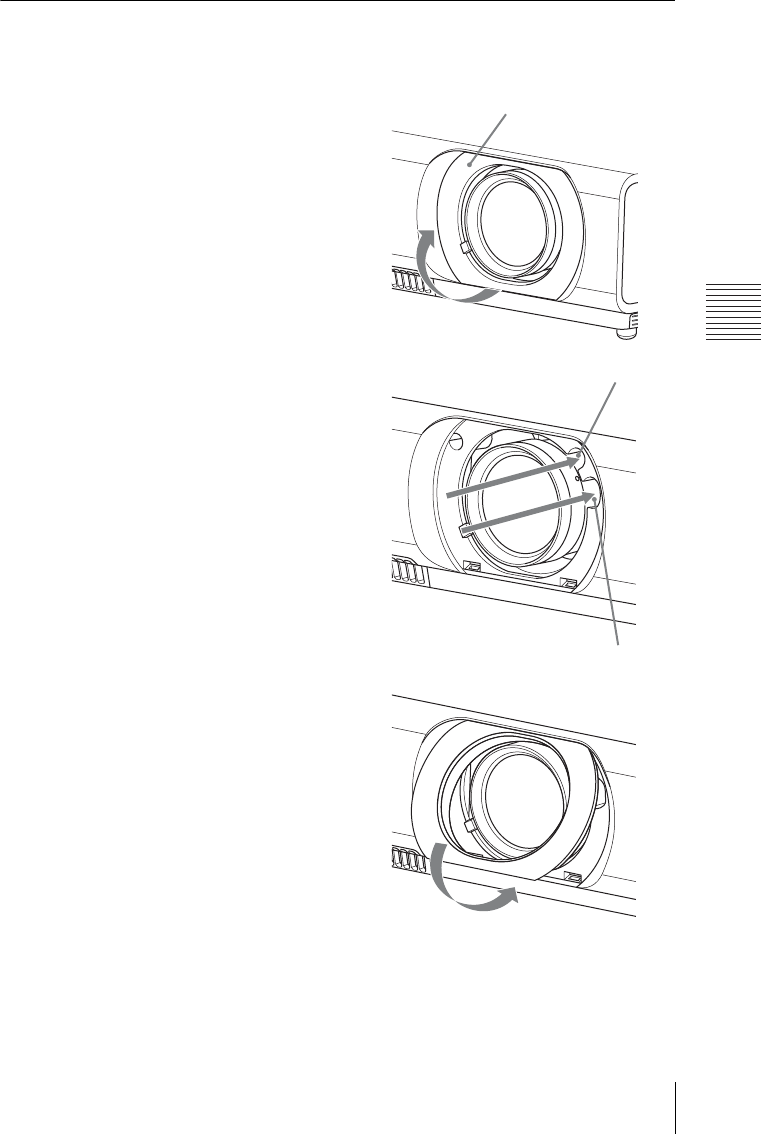

1 Lift up the lower end of the lens shift cover
with your finger to remove it.
2 Insert a Philips screwdriver to the 1H
shift screw inside the unit and turn it to
adjust right or left, and to the 2V shift
screw to adjust up or down. Be careful not
to look into the lens.
Continued turning of these screws will
return the lens shift to its original position.
Adjust the screws to set the lens shift to the
optimum position. For details on the
adjustment range, see the “Lens shift
range” (page 48).
3 Return the lens shift cover to the unit.
Lens shift cover
2V shift screw
1H shift screw
