Location and Function of Controls
Overview
a VIDEO INPUT connector
• S VIDEO (mini DIN 4-pin):
Connects to the S video output (Y/C
video output) of video equipment.
• VIDEO (phono type): Connects to
the composite video output of video
equipment.
• AUDIO jack (stereo minijack): To
listen to sound output from video
equipment, connect via this jack to the
audio output of the video equipment.
To listen to sound output from a
computer with the VPL-ES3, connect
via this jack to the audio output of the
computer.
b INPUT connector
• AUDIO INPUT A/B jack (stereo
minijack) (for VPL-EX3 only): To
listen to sound output from a
computer, connect via this jack to the
audio output of the computer.
(common INPUT A/B)
• INPUT A (HD D-sub 15-pin,
female): Inputs a computer signal,
video GBR signal, component signal,
or DTV signal depending on the
connected equipment.
Connects to the output connector of
equipment using the supplied cable or
an optional cable.
For details, see “Connecting a
Computer” on page 14 and
“Connecting a VCR” on page 15.
• INPUT B connector (HD D-sub 15-
pin) (for VPL-EX3 only): Connect to
external equipment such as a
computer.Connect to the monitor
output of a computer.
c OUTPUT connector
• MONITOR (HD D-sub 15-pin,
female): Connect to the video input
connector of the monitor. Outputs
signals from the selected channel and
computer signals only from among the
signals from the INPUT A or INPUT
B (VPL-EX3 only).
• AUDIO (stereo minijack): Connects
to external active speakers. The
volume of the speakers can be
controlled by the VOLUME +/– keys
on the Remote Commander.
For the VPL-EX3, when INPUT A or
INPUT B is selected, the sound input
to the AUDIO (AUDIO INPUT A/B)
connector which is common for
INPUT A/B is output.
When VIDEO or S VIDEO is selected,
the sound input to the AUDIO input
connector of VIDEO IN is output.
d RS-232C connector (D-sub 9-
pin, female)
Connects to a computer to operate the
projector from the computer.
The keys that have the same names as those
on the control panel function identically.
a INPUT key
b APA (Auto Pixel Alignment) key
Automatically adjusts a picture to its
clearest while a signal is input from a
computer.
For details, see “Smart APA” in “The
SET SETTING Menu” on page 28.

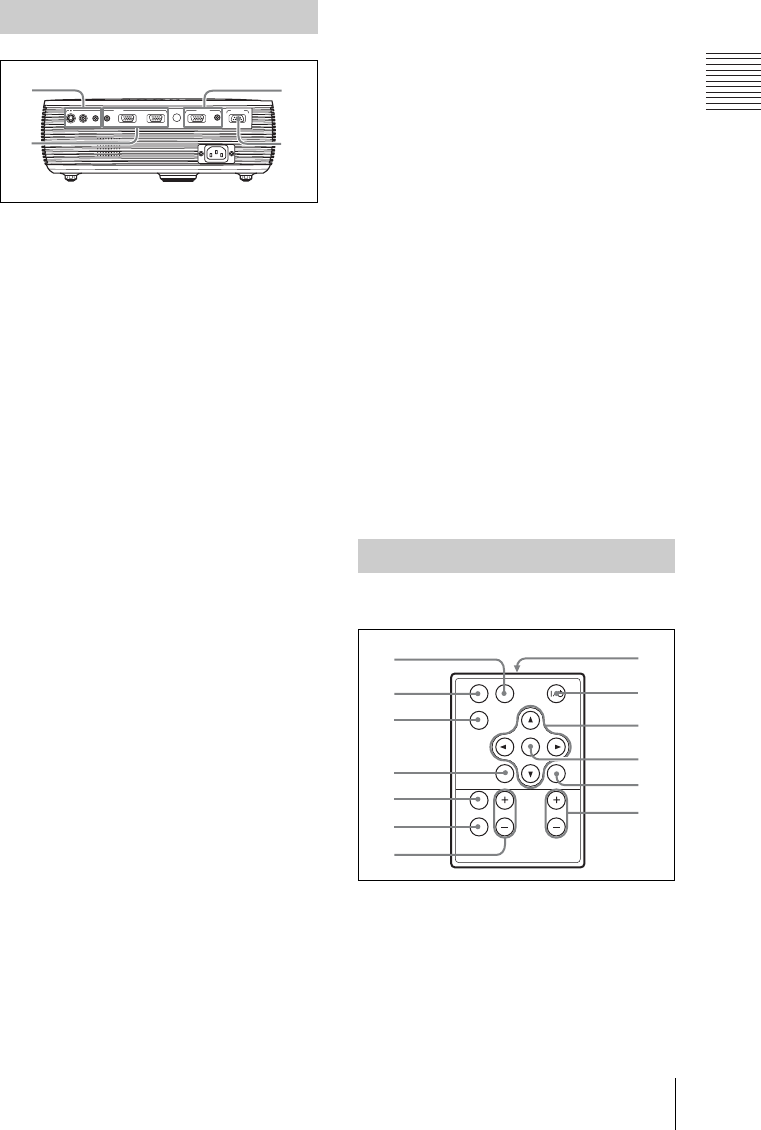

Connector Panel
S VIDEO VIDEO AUDIO
AUDIO
INPUT A/B
INPUT A
INPUT OUTPUT REMOTE
INPUT B MONITOR AUDIO RS232C
3
4
1
2
