14
mini-GBIC Ports (Port 27~28):
The Switch is equipped with two mini-GBIC ports, supported optional
1000BASE-SX/LX mini-GBIC module.
Note: When the port was set to “Forced Mode”, the Auto
MDI/MDIX will be disabled.
Rear Panel

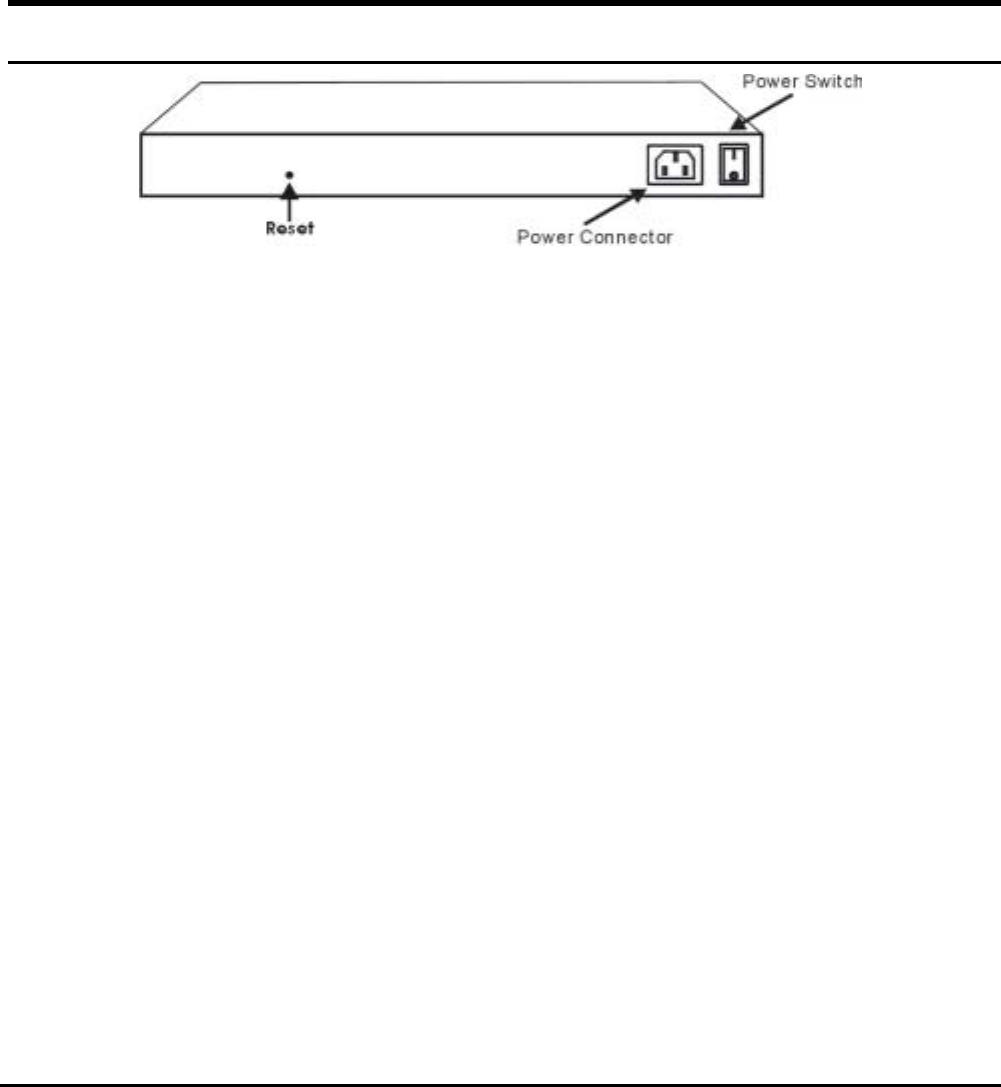

Figure 4. Rear panel of the Switch
Power Switch:
This is a switch where you can control to enable or disable the power.
AC Power Connector:
This is a three-pronged connector that supports the power cord. Plug
in the female connector of the provided power cord into this connector,
and the male into a power outlet. Supported input voltages range from
100-240V AC at 50-60Hz.
Reset:
The Reset button is to reset all the setting back to the factory default.
Note: Be sure that you recorded the setting of your device, else all
the setting will be erased when pressing the “Reset” button.
